Vertical Alignment

NOTE: In order to align the Cruise-Control Module (C-CM), which is a radar sensor unit, the vehicle must be in a wheel alignment bay station so that the vehicle is level.

NOTE: Damage to the C-CM bracket may affect correct alignment. When aligning the C-CM, inspect the C-CM bracket for damage and repair as necessary before carrying out the alignment procedure.

NOTE: If the front bumper cover has already been removed because of module replacement, there is no need to carry-out the first 2 steps.

Remove the front lower air deflector. For additional information, refer to Bumper - Exploded View, Front in BUMPER SYSTEM article.

NOTE: When removing the C-CM radar sensor fascia cover retaining nut, make sure the cover stud is held with pliers to prevent twisting the stud off the cover.

Fig 1: Locating C-CM Radar Sensor Fascia Cover Retaining Nut

Courtesy of FORD MOTOR CO.

Remove the C-CM radar sensor fascia cover retaining nut and cover.
Place the vehicle on a wheel alignment bay station.
Locate the C-CM radar sensor alignment screw.

Fig 2: Locating Speed Control Sensor Alignment Screw
Courtesy of FORD MOTOR CO.
Place a combination square level on the face of the C-CM radar sensor unit and check alignment.

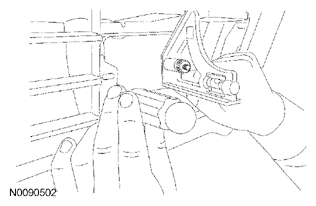

Fig 3: Checking Alignment Of C-CM Radar Sensor Unit Using Combination Square Level
Courtesy of FORD MOTOR CO.
Keeping the combination square level on the face of the C-CM radar sensor unit, adjust the pitch of the sensor by using an E5 inverted Torx® bit to adjust the screw until the sensor is vertical and level.

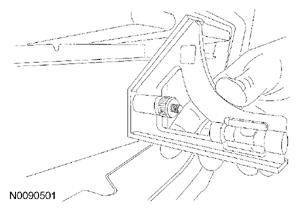

Fig 4: Checking C-CM Radar Sensor Unit Adjusting Screw
Courtesy of FORD MOTOR CO.

NOTE: Prior to installing the C-CM radar sensor fascia cover or front bumper cover, clean and remove any debris on the front or back of the cover.

Install the C-CM radar sensor fascia cover and retaining nut or front bumper cover.
