Pinpoint Test N: The Stability/Traction Control System Cannot Be Disabled

NOTE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
  1. N1 VERIFY THAT THE KEY IN USE IS NOT RESTRICTED
    • Ignition ON.
    • Monitor the message center while pressing the stability/traction control switch.
    • Is ADVTRAC ON MY KEY SETTING displayed in the message center?
    • Yes  : INFORM the customer that the key being used is MyKey™-restricted. If necessary, REFER to the Owner's Literature for information regarding the programming of MyKey™ features. Using an administrator key, TEST the system for normal operation.
    • No  : GO to N2.
  2. N2 ISOLATE THE STABILITY/TRACTION CONTROL SWITCH
    • Vehicles with navigation:
    • Disconnect: FCIM C2403.
    • Vehicles without navigation:
    • Disconnect: HVAC-Dual Automatic Temperature Control (DATC) C228C.
    • Ignition ON.
    • Vehicles with navigation:  Connect a fused jumper wire to FCIM C2403-7, circuit CCA15 (YE/GY), harness side and momentarily connect the other end of the jumper wire to ground.
      Fig 1: Identifying Connection Of Fused Jumper Wire From FCIM C2403-7, Circuit CCA15 (YE/GY) And Ground
      G07813789Courtesy of FORD MOTOR CO.
    • Vehicles without navigation:  Connect a fused jumper wire to HVAC-DATC C228C-7, circuit CCA15 (YE/GY), harness side and momentarily connect the other end of the jumper wire to ground.
      Fig 2: Identifying Connection Of Fused Jumper Wire From HAVC-DATC C228C-7, Circuit CCA15 (YE/GY) And Ground
      G07813790Courtesy of FORD MOTOR CO.
    • As the jumper wire is connected to ground, observe the sliding-car OFF icon in the message center.
    • Does the sliding-car OFF icon illuminate when the jumper wire is connected to ground?
  3. N3 CHECK THE STABILITY/TRACTION CONTROL SWITCH CIRCUIT FOR AN OPEN
    • Ignition OFF.
    • Disconnect: IC C220 (all vehicles).
    • Vehicles with navigation:  Measure the resistance between IC C220-18, circuit CCA15 (YE/GY), harness side and FCIM C2403-7, circuit CCA15 (YE/GY), harness side.

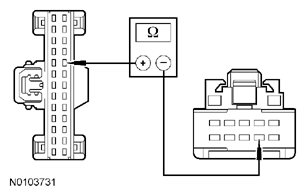

      Fig 3: Checking Stability/Traction Control Switch Circuit For Open (Vehicles With Navigation)
      G07813791Courtesy of FORD MOTOR CO.
      • Yes  : GO to N4.
      • No  : REPAIR circuit CCA15 (YE/GY). TEST the system for normal operation.
    • Vehicles without navigation:  Measure the resistance between IC C220-18, circuit CCA15 (YE/GY), harness side and HVAC-DATC C228C-7, circuit CCA15 (YE/GY), harness side.
      Fig 4: Checking Stability/Traction Control Switch Circuit For Open (Vehicles Without Navigation)
      G07813792Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?
  4. N4 CHECK THE STABILITY/TRACTION CONTROL SWITCH CIRCUIT FOR A SHORT TO GROUND
    • Measure the resistance between IC C220-18, circuit CCA15 (YE/GY), harness side and ground.
      Fig 5: Measuring Resistance Between IC C220-18, Circuit CCA15 (YE/GY) And Ground
      G07813793Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10, 000 ohms?
    • Yes  : GO to N5.
    • No  : REPAIR circuit CCA15 (YE/GY). CLEAR the DTCs. REPEAT the self-test.
  5. N5 CHECK THE STABILITY/TRACTION CONTROL SWITCH CIRCUIT FOR A SHORT TO VOLTAGE
    • Ignition ON.
    • Measure the voltage between IC C220-18, circuit CCA15 (YE/GY), harness side and ground.
      Fig 6: Measuring Voltage Between Ic C220-18, Circuit CCA15 (YE/GY) And Ground
      G07813794Courtesy of FORD MOTOR CO.
    • Is any voltage present?
    • Yes  : REPAIR circuit CCA15 (YE/GY). CLEAR the DTCs. REPEAT the self-test.
    • No  : GO to N6.
  6. N6 CHECK FOR CORRECT IC OPERATION
    • Check IC C220 for:
      • corrosion.
      • pushed-out pins.
      • spread terminals.
    • Connect the IC connector and make sure it seats correctly.
    • Operate the system and verify the concern is still present.
    • Is the concern still present?
