DATC HVAC Module Connector End View - C2356A

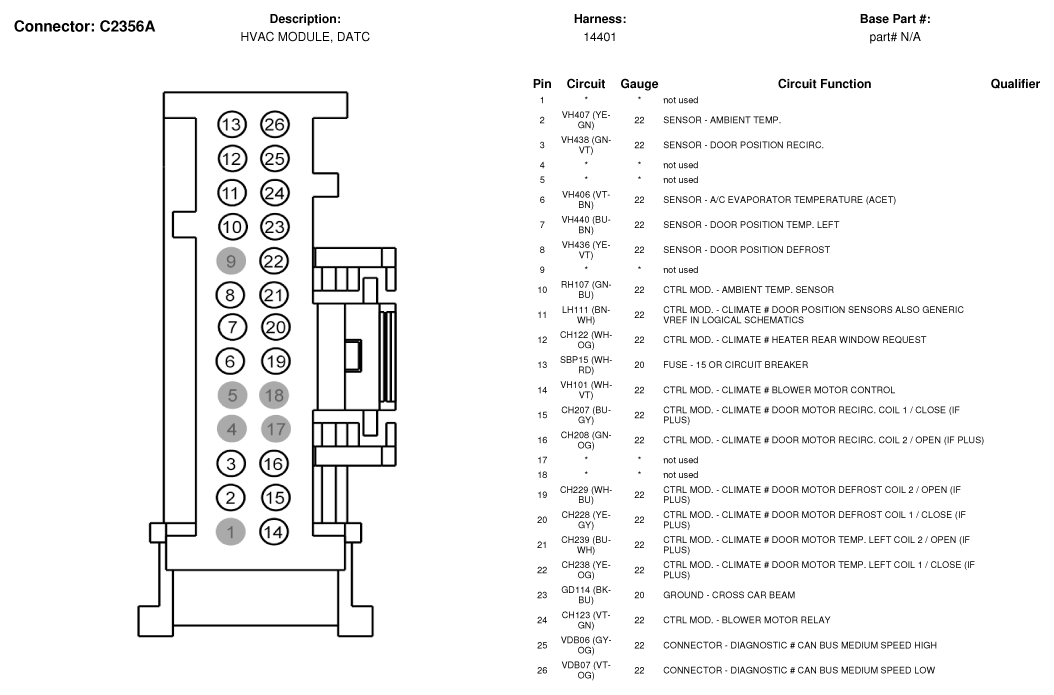

Fig 1: DATC HVAC Module Connector End View (C2356A)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
