DATC HVAC Module Connector End View - C2356B

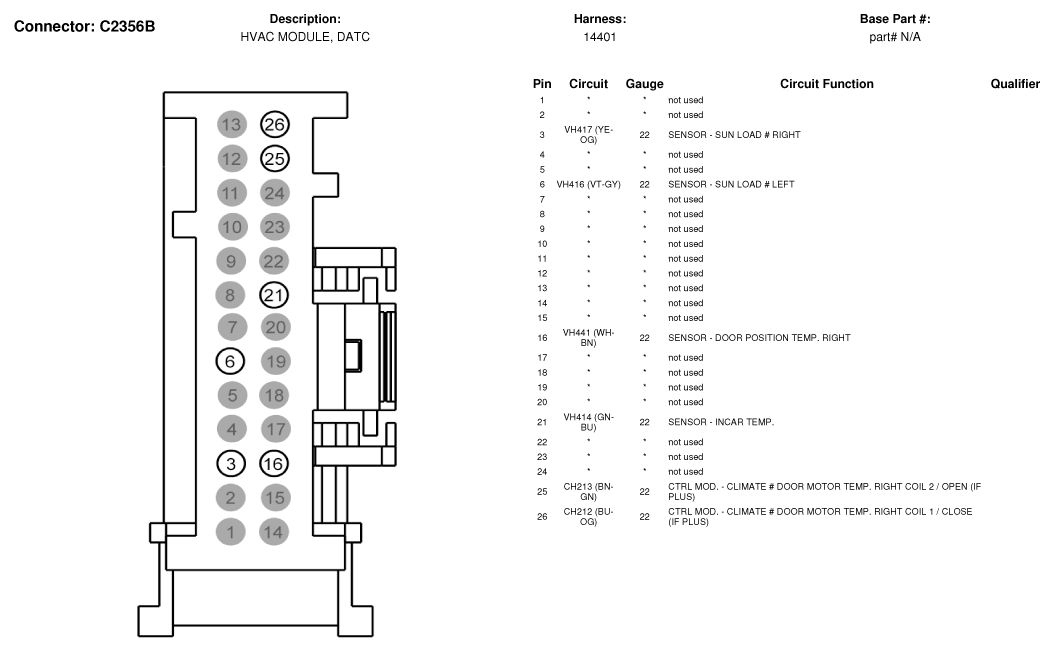

Fig 1: DATC HVAC Module Connector End View (C2356B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
