Powertrain Control Module Connector End View - C1381B

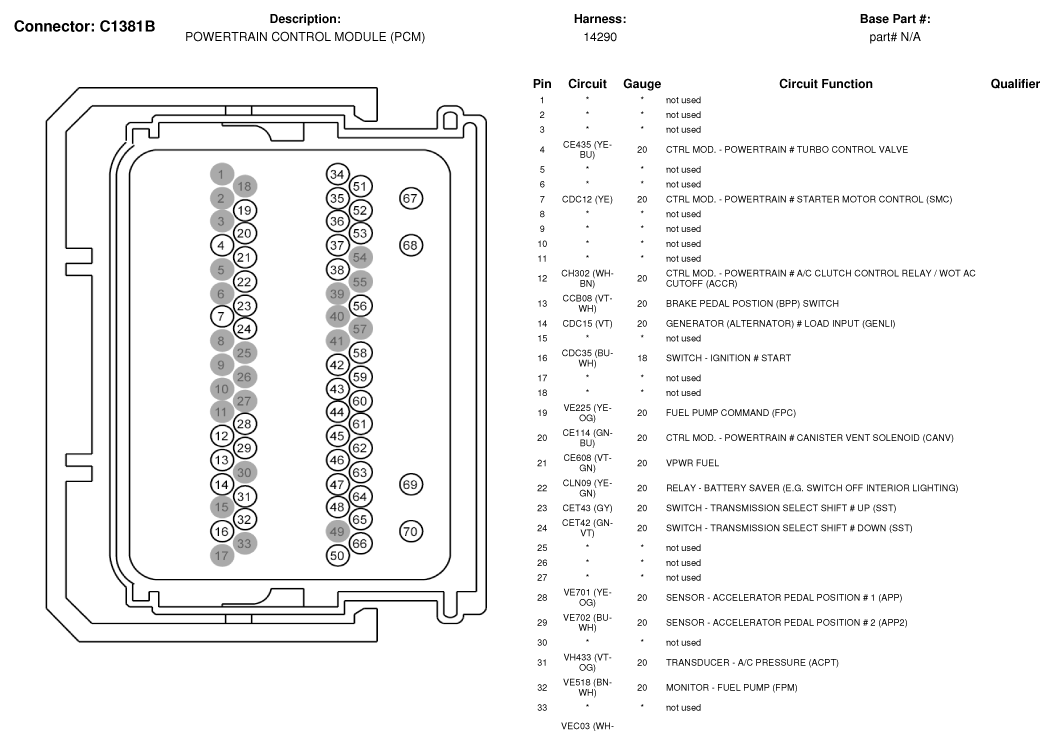

Fig 1: Powertrain Control Module Connector End View (C1381B) (1 Of 2)
G07329975Courtesy of FORD MOTOR CO.

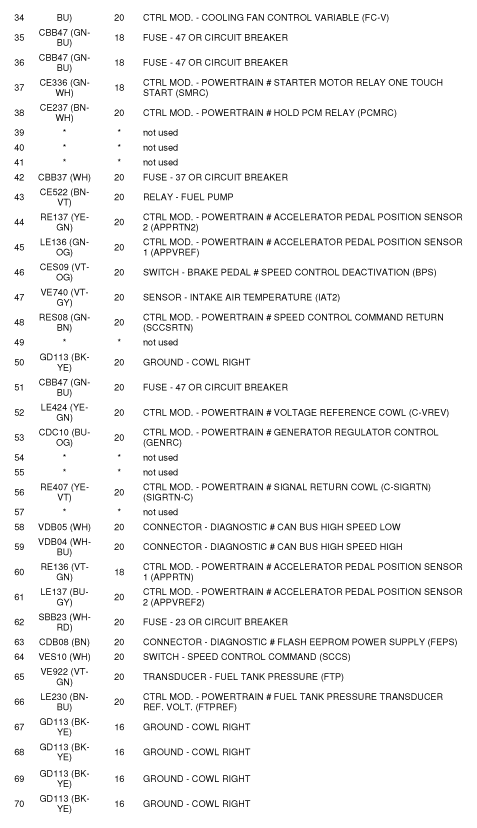

Fig 2: Powertrain Control Module Connector End View (C1381B) (2 Of 2)
G07329976Courtesy of FORD MOTOR CO.
