Powertrain Control Module Connector End View - C175B

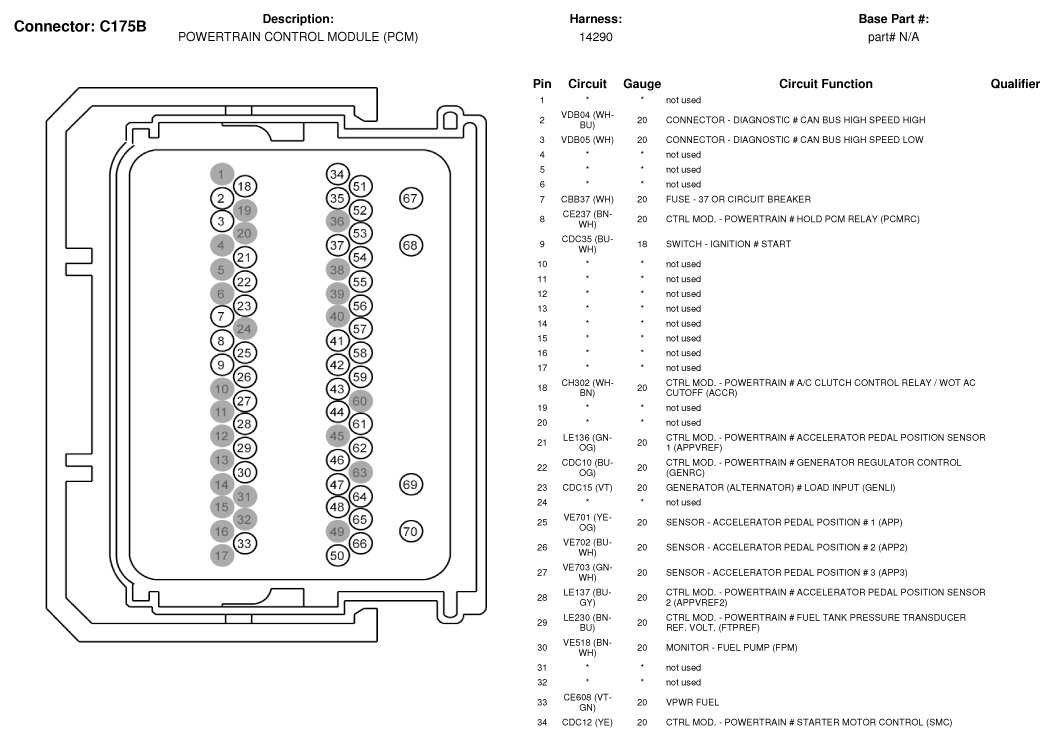

Fig 1: Powertrain Control Module Connector End View (C175B) (1 Of 2)
G07329766Courtesy of FORD MOTOR CO.

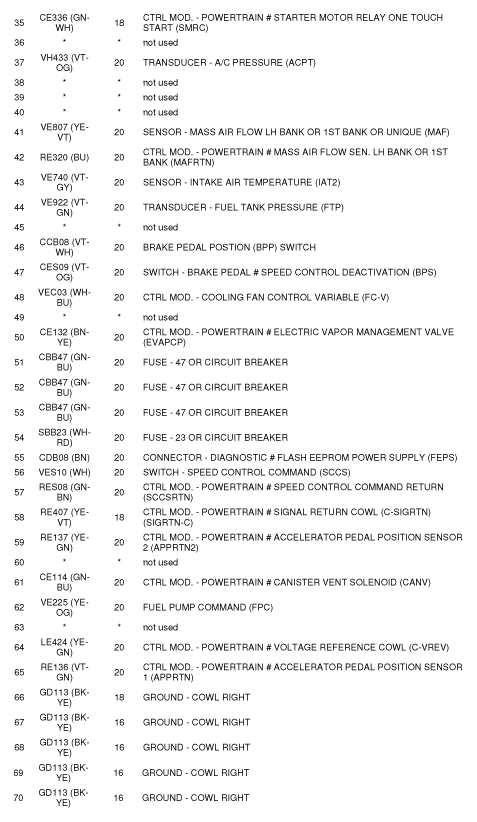

Fig 2: Powertrain Control Module Connector End View (C175B) (2 Of 2)
G07329767Courtesy of FORD MOTOR CO.
