Smart Junction Box (SJB): Notes
WARNING: This page is about a different car, the 2011 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

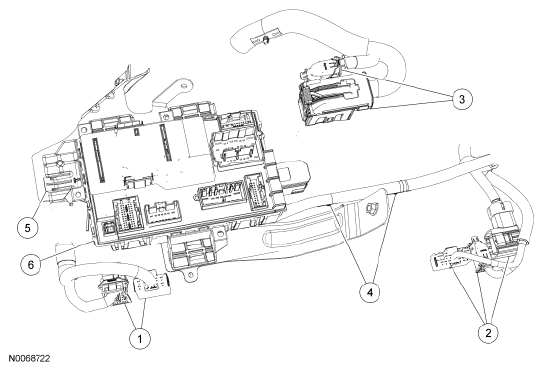

| Item |
Part Number |
Description |
| 1 |
- |
Smart Junction Box (SJB) electrical connectors (part of 14401) |
| 2 |
- |
SJB electrical connectors (part of 14290) |
| 3 |
- |
SJB electrical connectors (part of 14A005) |
| 4 |
- |
Harness push pins (2 required) |
| 5 |
- |
SJB release tab |
| 6 |
15604 |
SJB |
