Accessory Protocol Interface Module (APIM): Notes
WARNING: This page is about a different car, the 2011 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

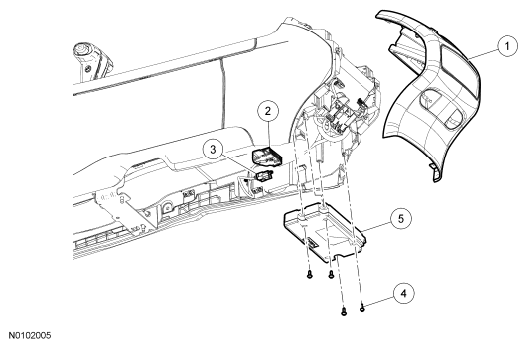

| Item |
Part Number |
Description |
| 1 |
54045A36 |
Floor console rear trim panel |
| 2 |
- |
Accessory Protocol Interface Module (APIM) electrical connector (part of 14B079) |
| 3 |
14D202 |
Universal Serial Bus (USB) cable |
| 4 |
W506943-S |
APIM screws (4 required) |
| 5 |
14D212 |
APIM |
