Antenna Module: Notes

WARNING: This page is about a different car, the 2011 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

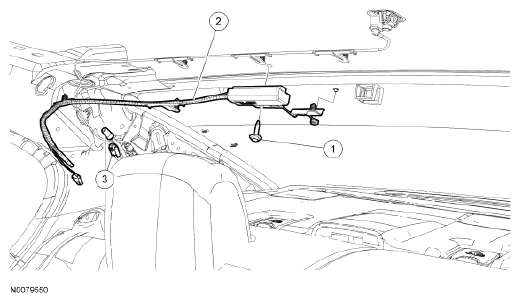

Fig 1: Identifying Antenna Module, Connector And Bolts
G06075578Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Antenna module bolt
2 18812 Antenna module
3 - Antenna module-to-antenna cable connectors (part of 14A005)
