Audio Digital Signal Processing (DSP) Module: Notes
WARNING: This page is about a different car, the 2011 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

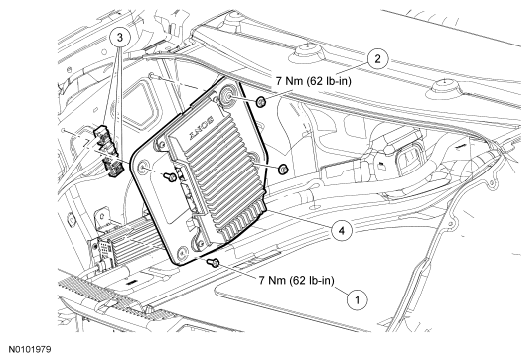

| Item |
Part Number |
Description |
| 1 |
W706281-S |
Audio Digital Signal Processing (DSP) module bolts (2 required) |
| 2 |
N621906-S |
Audio DSP module nuts (2 required) |
| 3 |
- |
Audio DSP module electrical connectors (part of 14A005) |
| 4 |
18B849 |
Audio DSP module |
