Front Controls Interface Module (FCIM): Notes
WARNING: This page is about a different car, the 2011 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

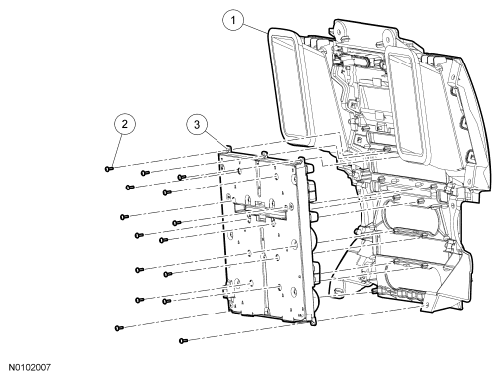

Without navigation shown in illustration, with navigation similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
5404302 |
Center instrument panel finish panel |
| 2 |
W713926-S |
Front Controls Interface Module (FCIM) screws (10 required with navigation, 15 required without navigation) |
| 3 |
18842 |
FCIM |
