Cruise Control Module Connector - C1582

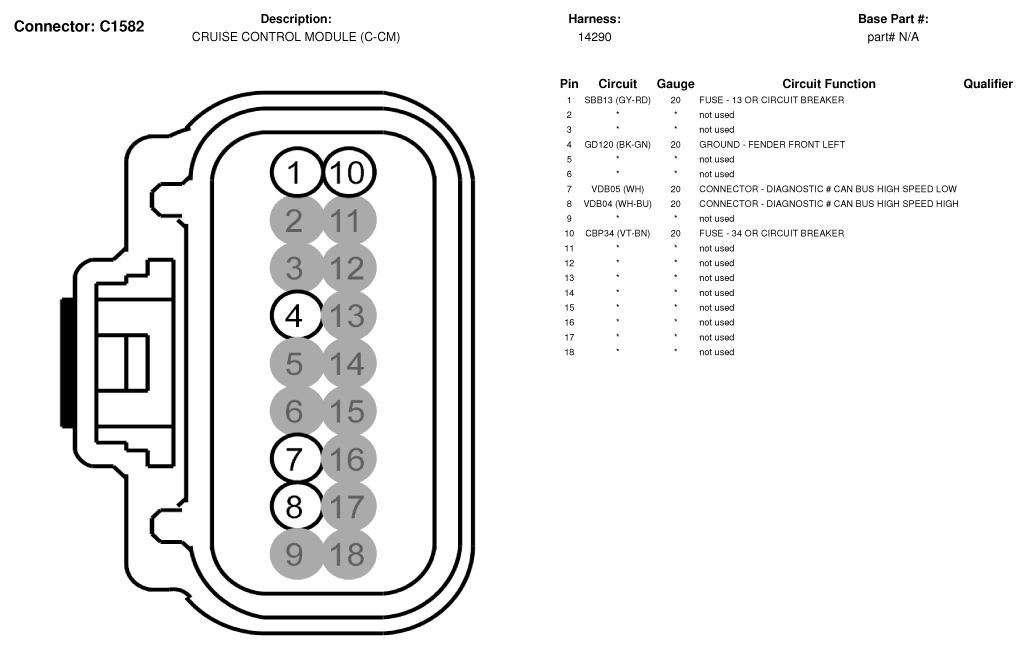

Fig 1: Cruise Control Module Connector End View (C1582)
G07329992Courtesy of FORD MOTOR CO.
