Front Controls Interface Module (FCIM) DTC Chart

Information and Entertainment System

DTC Charts

NOTE: Refer to Description and Operation, Intelligent Access (IA) with Push Button Start in Anti-Theft - Passive Anti-Theft System (PATS) Anti-Theft - Passive Anti-Theft System (PATS) to review the procedures for achieving the various ignition modes (ignition off, ignition in accessory, ignition in run, and ignition start) on vehicles with this feature.

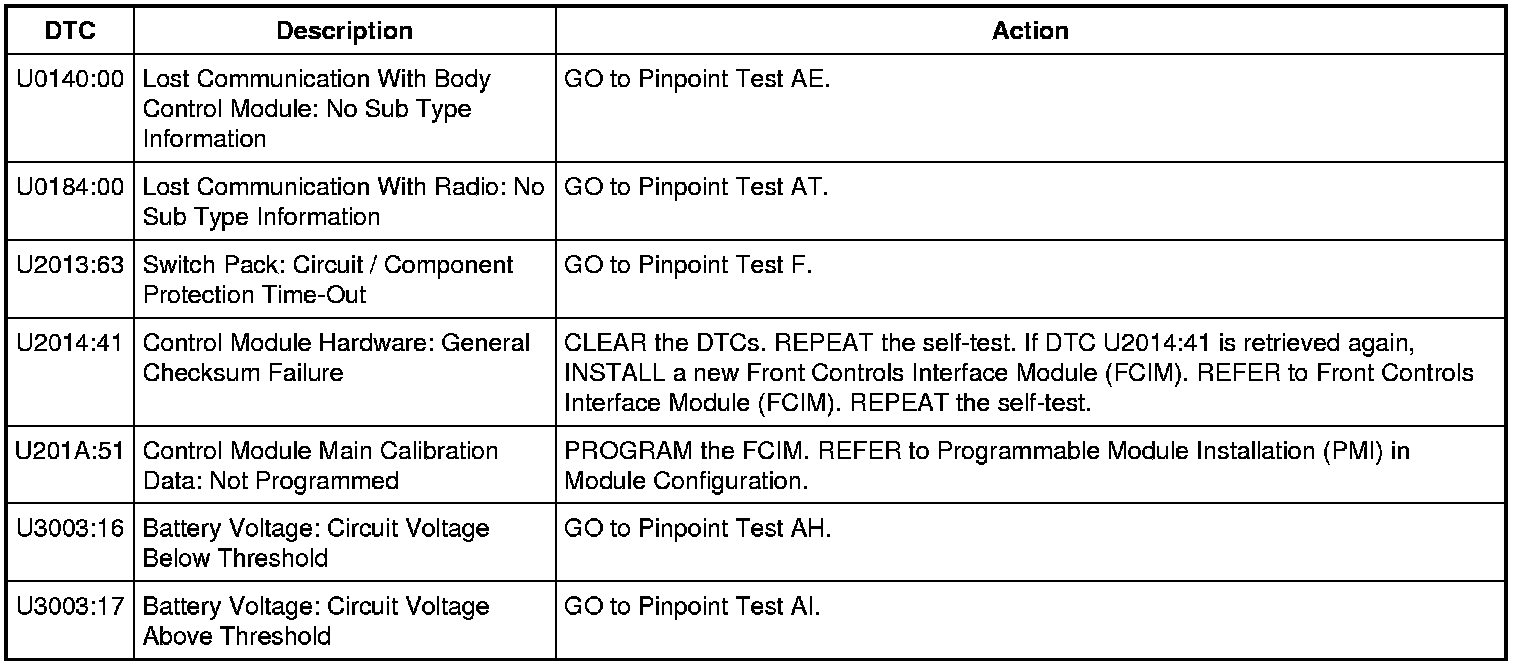

Front Controls Interface Module (FCIM) DTC Chart

NOTE: This module utilizes a 5-character DTC followed by a 2-character failure-type code. The failure-type code provides information about specific fault conditions such as opens, or shorts to ground. Continuous memory DTCs have an additional 2-character DTC status code suffix to assist in determining DTC history.
