Interior Lighting Module: Service and Repair

Interior Lighting Control Module (ILCM)









Removal and Installation

1. Remove the floor console. For additional information, refer to Instrument Panel and Console Service and Repair.

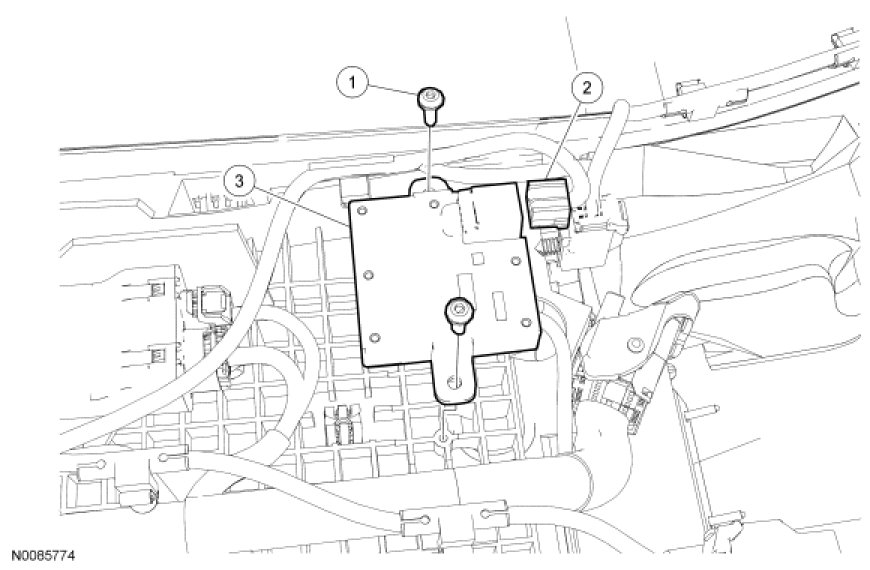

2. Remove the 2 bolts and the Interior Lighting Control Module (ILCM).

3. Disconnect the electrical connector.

4. To install, reverse the removal procedure.
