Pinpoint Test N: The Stability/Traction Control System Cannot Be Disabled

NOTE: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multi-meter probes.

N1 VERIFY THAT THE KEY IN USE IS NOT RESTRICTED
- Ignition ON.
- Monitor the message center while pressing the stability/traction control switch.
- Is ADVTRAC ON MY KEY SETTING displayed in the message center?
- Yes : INFORM the customer that the key being used is MyKey™-restricted. If necessary, REFER to the Owner's Literature for information regarding the programming of MyKey™ features. Using an administrator key, TEST the system for normal operation.
- No : GO to N2.
N2 ISOLATE THE STABILITY/TRACTION CONTROL SWITCH
- Disconnect: FCIM C2403.
- Ignition ON.
- Connect a fused jumper wire to FCIM C2403-7, circuit CCA15 (YE/GY), harness side and momentarily connect the other end of the jumper wire to ground.

  Fig 1: Connecting Fused Jumper Wire Fcim C2403-7, Circuit CCA15 (YE/ GY), Harness Side And Ground
  Courtesy of FORD MOTOR CO.
- As the jumper wire is connected to ground, observe the sliding-car OFF icon in the message center.
- Does the sliding-car OFF icon illuminate when the jumper wire is connected to ground?
- Yes : INSTALL a new FCIM. REFER to INFORMATION SYSTEM AND ENTERTAINMENT SYSTEM article. CLEAR the DTCs. REPEAT the self-test.
- No : GO to N3.
N3 CHECK THE STABILITY/TRACTION CONTROL SWITCH CIRCUIT FOR AN OPEN
- Ignition OFF.
- Disconnect: IPC C220.
- Measure the resistance between IPC C220-18, circuit CCA15 (YE/GY), harness side and FCIM C2403-7, circuit CCA15 (YE/GY), harness side.

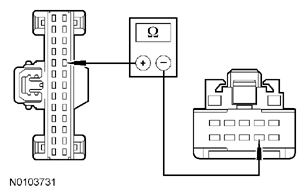

  Fig 2: Measuring Resistance Between IPC C220-18, Circuit CCA15 (YE/ GY) And FCIM C2403-7, Circuit CCA15 (YE/GY), Harness Side
  Courtesy of FORD MOTOR CO.
- Is the resistance less than 5 ohms?
- Yes : GO to N4.
- No : REPAIR circuit CCA15 (YE/GY). TEST the system for normal operation.
N4 CHECK THE STABILITY/TRACTION CONTROL SWITCH CIRCUIT FOR A SHORT TO GROUND
- Measure the resistance between IPC C220-18, circuit CCA15 (YE/GY), harness side and ground.

  Fig 3: Measuring Resistance Between IPC C220-18, Circuit CCA15 (YE/ GY), Harness Side And Ground
  Courtesy of FORD MOTOR CO.
- Is the resistance greater than 10,000 ohms?
- Yes : GO to N5.
- No : REPAIR circuit CCA15 (YE/GY). CLEAR the DTCs.
  REPEAT the self-test.
N5 CHECK THE STABILITY/TRACTION CONTROL SWITCH CIRCUIT FOR A SHORT TO VOLTAGE
- Ignition ON.
- Measure the voltage between IPC C220-18, circuit CCA15 (YE/GY), harness side and ground.

  Fig 4: Measuring Voltage Between IPC C220-18, Circuit CCA15 (YE/GY), Harness Side And Ground
  Courtesy of FORD MOTOR CO.
- Is any voltage present?
- Yes : REPAIR circuit CCA15 (YE/GY). CLEAR the DTCs.
  REPEAT the self-test.
- No : GO to N6.
N6 CHECK FOR CORRECT IPC OPERATION
- Check IPC C220 for:
  - corrosion.
  - pushed-out pins.
  - spread terminals.
- Connect the IPC connector and make sure it seats correctly.
- Operate the system and verify the concern is still present.
- Is the concern still present?
- Yes : INSTALL a new IPC. REFER to INFORMATION CENTER - INSTRUMENTATION, MESSAGE CENTER, AND WARNING CHIMES article.
  CLEAR the DTCs. REPEAT the self-test.
- No : The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. CLEAR the DTCs. REPEAT the self-test.
