Steering Angle Sensor Module (SASM): Notes

SPECIAL TOOL(S)

G07789844
Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

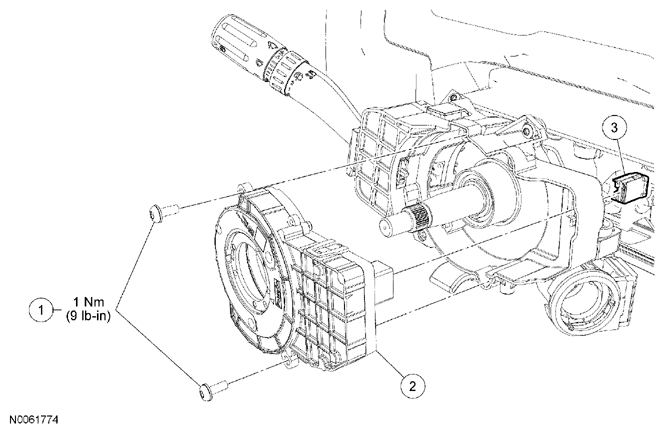

Fig 1: Steering Angle Sensor Module, Screws And Electrical Connector With Torque Specifications
G07789845Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Steering Angle Sensor Module (SASM) bolts (part of 13D774) (2 required)
2 3F818 SASM
3 - SASM electrical connector (part of 14401)
