Power Steering Control Module Connector End View - C1467A

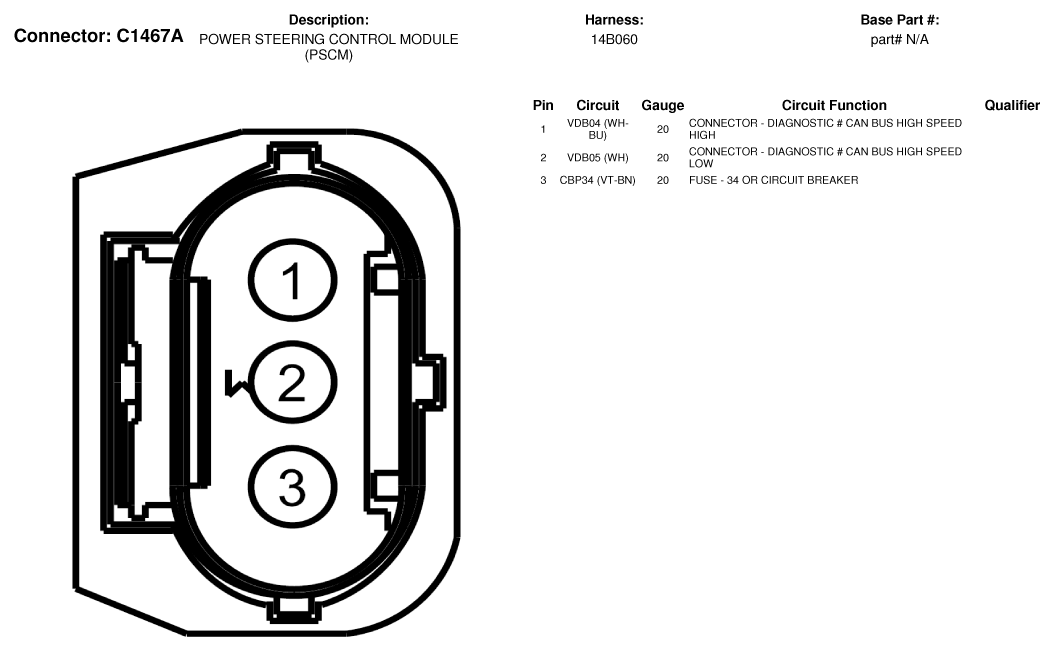

Fig 1: Power Steering Control Module Connector End View (C1467A)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
