Front Controls Interface Module Connector - C2403

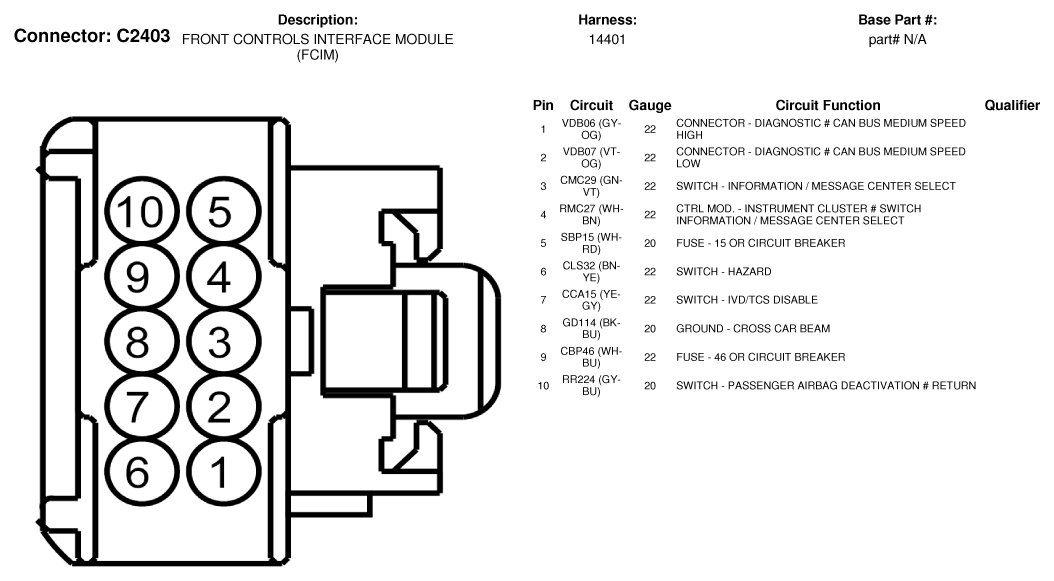

Fig 1: Front Controls Interface Module Connector End View (C2403)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
