Interior Lighting Control Module Connector - C3256

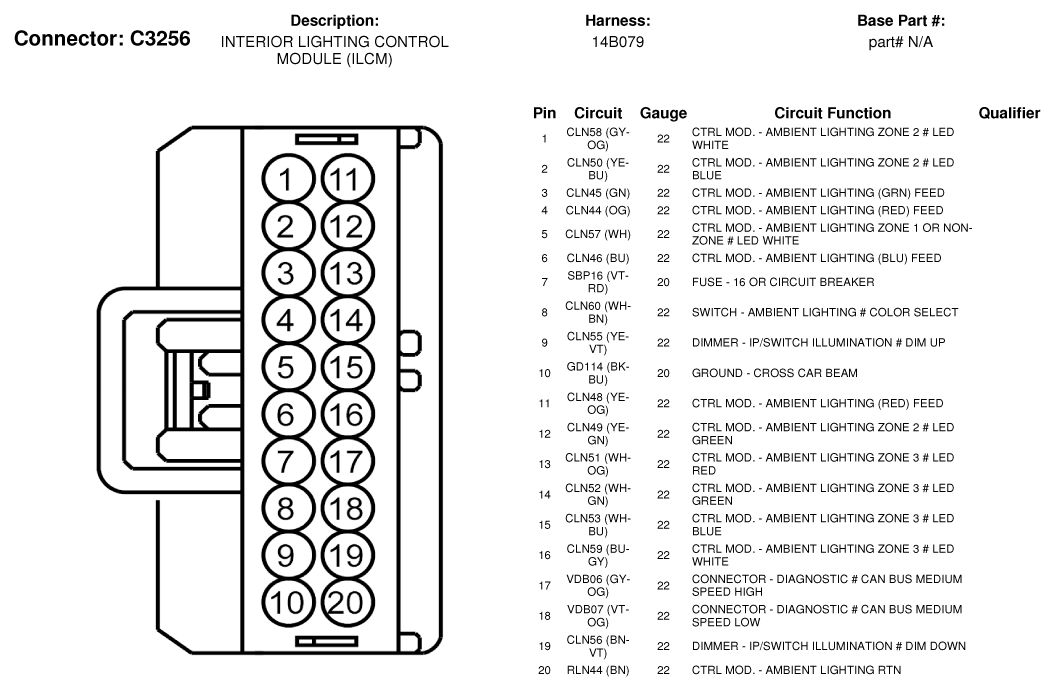

Fig 1: Interior Lighting Control Module Connector End View (C3256)
G07336340Courtesy of FORD MOTOR CO.
