Powertrain Control Module Connector - C1381E

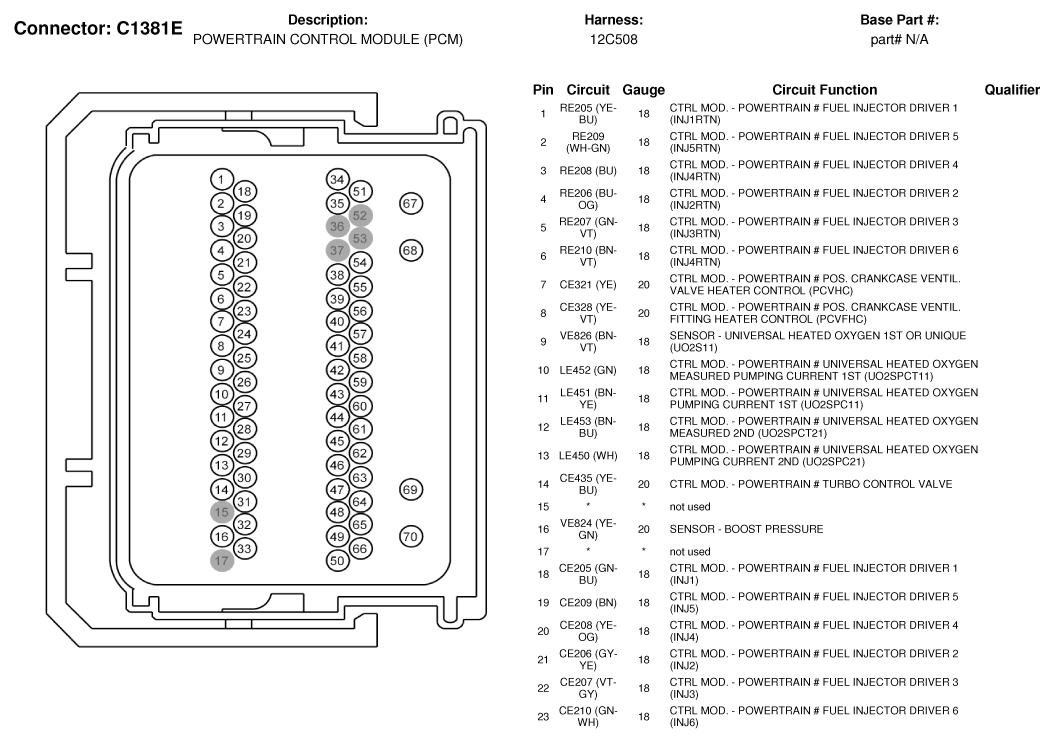

Fig 1: Powertrain Control Module Connector End View (C1381E) (1 Of 3)
G07336213Courtesy of FORD MOTOR CO.

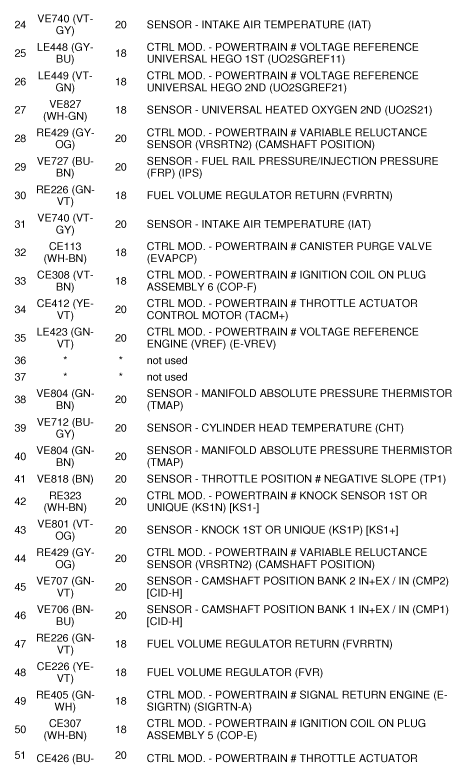

Fig 1: Powertrain Control Module Connector End View (C1381E) (2 Of 3)
G07336214Courtesy of FORD MOTOR CO.

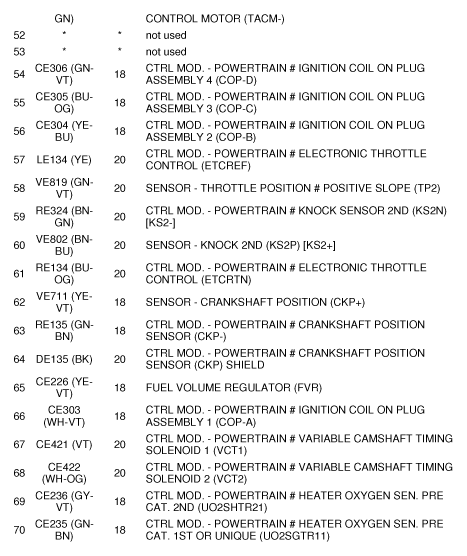

Fig 1: Powertrain Control Module Connector End View (C1381E) (3 Of 3)
G07336215Courtesy of FORD MOTOR CO.
