Transaxle Support Insulator - 3.5L GTDI: Notes

SPECIAL TOOL(S)

G07793043
 Bar, Engine Spreader
303-1454
G07793044
 Eye, Engine Lift
303-1245
G07793045
 Support Bar, Engine
303-F072
MATERIAL

Item Specification
Threadlock and Sealer
TA-25		 WSK-M2G351-A5

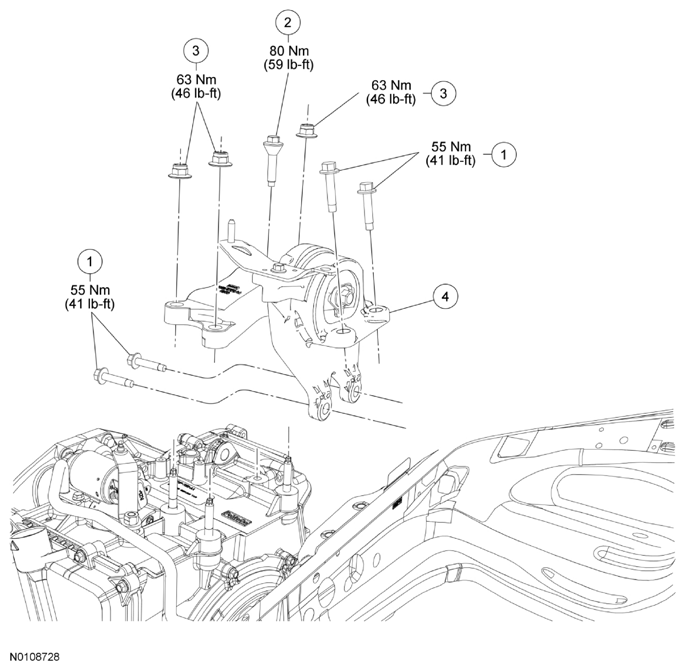

Fig 1: Transaxle Support Insulator Replacement Components With Torque Specifications -- 3.5L GTDI
G07793046Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W709234 Transaxle support insulator bolts
2 W712711 Transaxle support insulator bracket bolt
3 W714682 Transaxle support insulator bracket nuts
4 6F020 Transaxle support insulator
