Main Control Valve Body: Disassembly

NOTE: Note the location of the different length bolts for assembly.

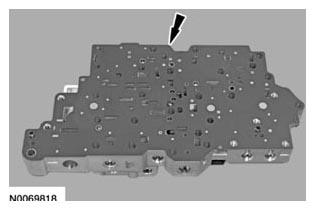

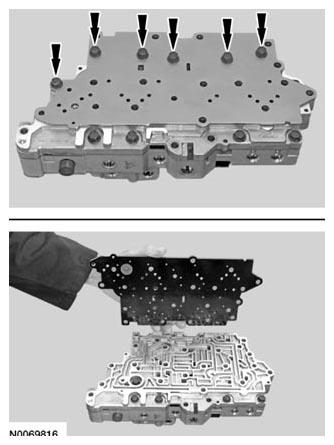

Fig 1: Locating Valve Body Separator Plate Mounting Bolts

Courtesy of FORD MOTOR CO.

Remove the 6 bolts and discard the transfer plate cover assembly.

NOTE: Note the location of the different length bolts for assembly.

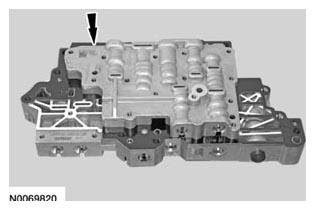

Fig 2: Locating Transfer Plate Assembly Bolts

Courtesy of FORD MOTOR CO.

Remove the 5 valve body bolts and the transfer plate assembly.
Remove and discard the valve body separator plate.

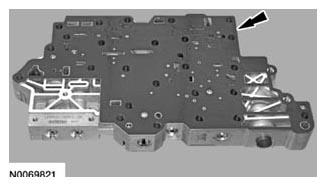

Fig 3: Locating Valve Body Separator Plate
Courtesy of FORD MOTOR CO.

NOTE: Note the location of the check balls for assembly. Original valve bodies will have a valve latch circuit check ball and 6 other check balls. Valve bodies that have been replaced or updated will only have 6 check balls.

Remove the 6 check balls and if equipped, remove and discard the valve latch circuit check ball.
1. 6 check balls
2. Valve latch circuit check ball (vehicles equipped with the original valve body only)

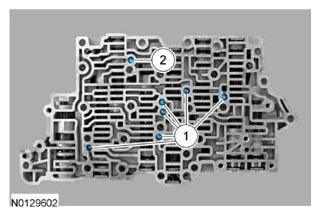

  Fig 4: Identifying Valve Latch Circuit Check Balls
  Courtesy of FORD MOTOR CO.
Remove the lower valve body assembly.

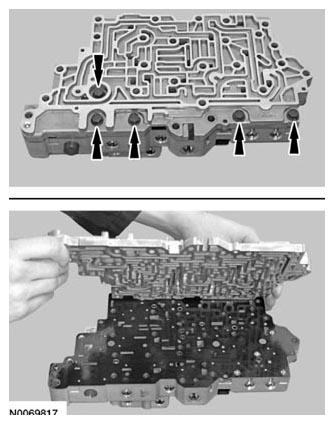

Fig 5: Locating Lower Valve Body Assembly
Courtesy of FORD MOTOR CO.
Remove and discard the lower valve body separator plate and gasket.

Fig 6: Locating Lower Valve Body Separator Plate And Gasket
Courtesy of FORD MOTOR CO.
Remove the manual valve from the valve body.

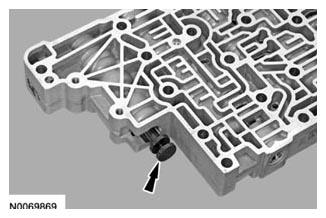

Fig 7: Locating Manual Valve
Courtesy of FORD MOTOR CO.

NOTE: Remove the valves by tapping the valve body on the palm of the hand to slide the valves out of the bores. It may be necessary to remove the valves and springs using a pick. If it is necessary to use a pick, use extreme caution to prevent damaging the valves or valve bores. If necessary, disassemble parts of the main control valve body in small groups. Take special care when handling the main control components, since they are the most precise and delicate parts of the transaxle. Neatly arrange the parts as they are removed to avoid mixing similar pieces.

NOTE: Do not stone or polish any valves. If the valves do not move freely, install a new assembly.

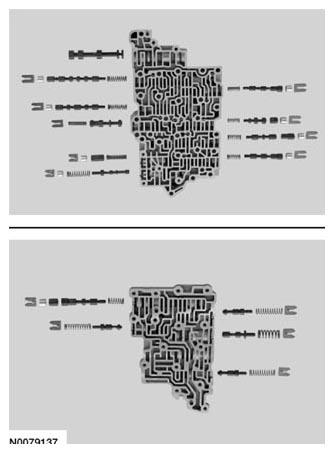

Fig 8: Identifying Valve And Spring

Courtesy of FORD MOTOR CO.

Remove the individual valves and springs from the main control valve body and lower valve body by removing the retaining clips. See the VALVE BODY and LOWER VALVE BODY illustrations at the beginning of this procedure for valve and spring locations. Clean valves, springs, main control valve body and lower valve body.
