Main Control Valve Body: Notes

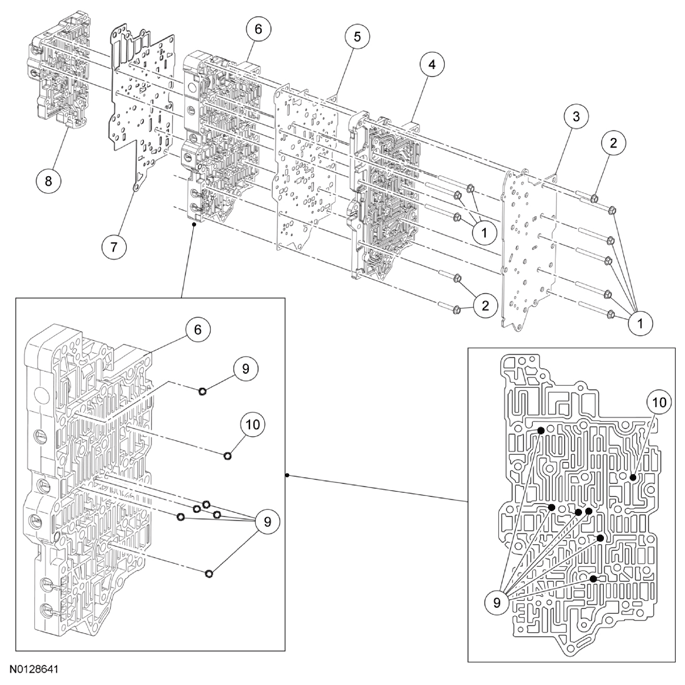

Fig 1: Identifying Main Control Valve Body Components Location
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
