Main Control Cover - 3.7L: Notes

MATERIAL

Item Specification
Motorcraft® MERCON® LV Automatic Transmission Fluid
XT-10-QLVC		 MERCON® LV

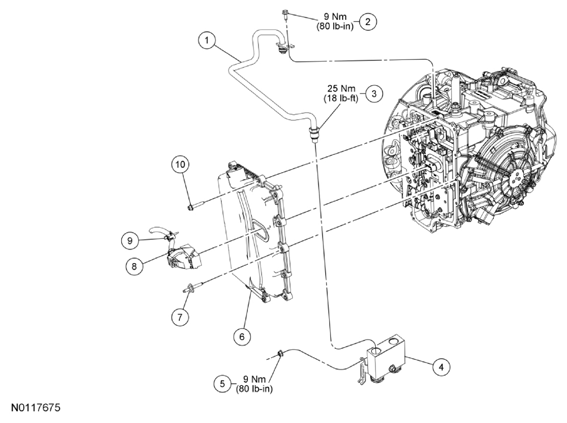

Fig 1: Main Control Cover Replacement Components With Torque Specifications -- 3.7L
G07793110Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7H420 Tube - transmission fluid cooler
2 W711538 Bolt - transmission fluid cooler tube
3 - Nut - transmission fluid cooler tube (part of 7H420)
4 7H322 Valve - transmission fluid cooler thermal bypass
5 W520101 Nut - transmission fluid cooler thermal bypass valve
6 7G004 Cover - main control
7 W708442 stud bolts - main control cover (3 required)
8 7A488 Connector - transaxle harness
9 14A169 Retainer - transaxle harness
10 7J289 Bolts - main control cover (11 required)
