Transaxle Support Insulator - 3.7L: Notes
SPECIAL TOOL(S)
| Oil Pan Holding Fixture 303-1295 |
MATERIAL
| Item | Specification |
|---|---|
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |

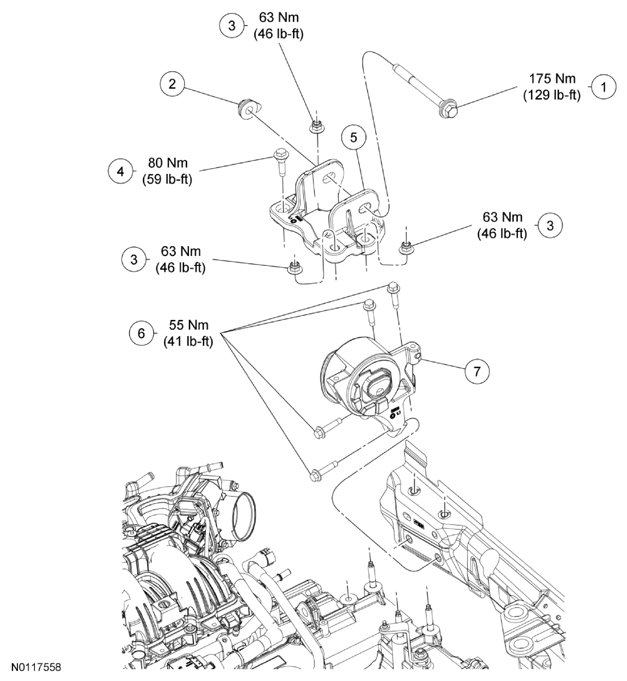

| Item | Part Number | Description |
|---|---|---|
| 1 | W711873 | Through bolt - transaxle support insulator |
| 2 | W711872 | Flagnut - transaxle support insulator through bolt |
| 3 | W714682 | Nuts - transaxle support insulator bracket |
| 4 | W712711 | Bolt - transaxle support insulator bracket |
| 5 | 6B033 | Bracket - transaxle support insulator |
| 6 | W709234 | Bolts - transaxle support insulator |
| 7 | 6F020 | Transaxle support insulator |
