Remote Function Actuator (RFA) Module DTC Chart

Starting System

DTC Charts

NOTE: Refer to Description and Operation, Intelligent Access with Push Button Start in Anti-Theft - Passive Anti-Theft System (PATS) Anti-Theft - Passive Anti-Theft System (PATS), to review the procedures for achieving the various ignition states (ignition OFF, ignition in ACCESSORY, ignition ON, ignition START).

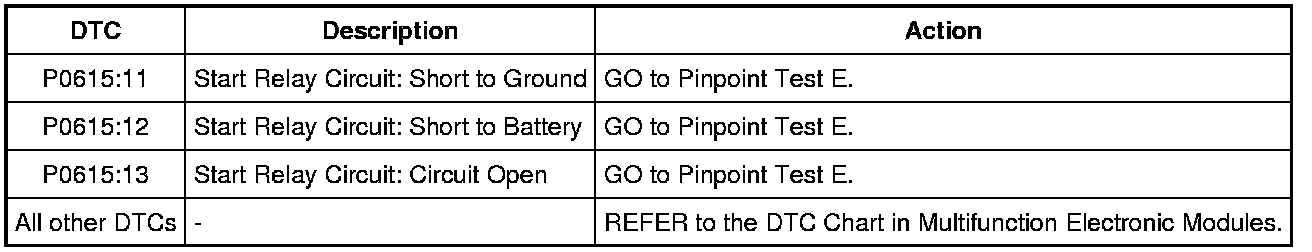

Remote Function Actuator (RFA) Module DTC Chart

NOTE: This module utilizes a 5-character DTC followed by a 2-character failure type code. The failure type code provides information about specific fault conditions such as opens or shorts to ground. CMDTCs have an additional 2-character DTC status code suffix to assist in determining DTC history.
