Crankshaft Position (CKP) Sensor

NOTE: During removal, disconnect the CKP electrical connector after removing it from the engine to prevent the CKP from falling into the bell housing.

NOTE: During installation, connect the CKP electrical connector before installing it on the engine to prevent the CKP from falling into the bell housing.

NOTE: After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.

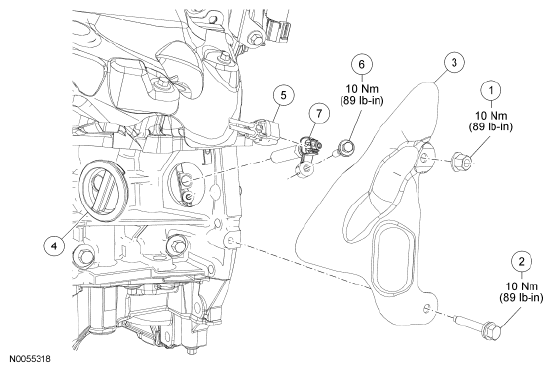

Fig 1: Exploded View Of Crankshaft Position (CKP) Sensor With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W701542	Heat shield nut
2	W701669	Heat shield bolt
3	6K342	Heat shield
4	6C070	Rubber grommet cover
5	-	Crankshaft Position (CKP) sensor electrical connector (part of 12A581)
6	6D327	CKP sensor bolt
7	6C315	CKP sensor
