Cylinder Head Temperature (CHT) Sensor
NOTE:
The lower intake manifold must be removed to service the Cylinder Head Temperature (CHT) sensor. For additional information, refer to
ENGINE - 3.5L
for 3.5L engines or
ENGINE - 3.7L
for 3.7L engines.
NOTE:
Discard the CHT
and install a new CHT
any time it is removed.

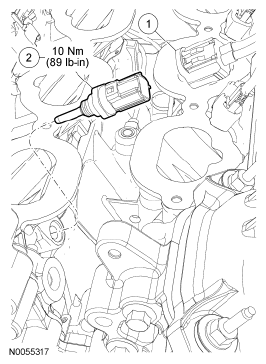

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Cylinder Head Temperature (CHT) sensor electrical connector (part of 12A581) |
| 2 | 6G004 | CHT sensor |
