Servo Kit - 3.5L Engine

NOTE: Kit assembly part number is 7D027.

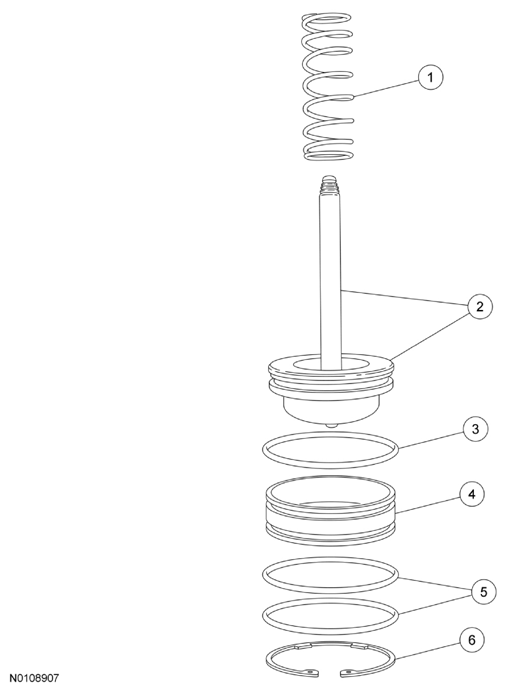

Fig 1: Exploded View Of Servo Kit - 3.5L Engine
G07785990Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 - Servo spring
2 - Servo piston
3 7D024 Servo piston O-ring
4 7D027 Servo cover
5 7D024 Servo cover O-rings (2 required)
6 7H074 Servo retainer
