Test KG: Fuel Injector
PINPOINT TEST KG:
FUEL INJECTOR

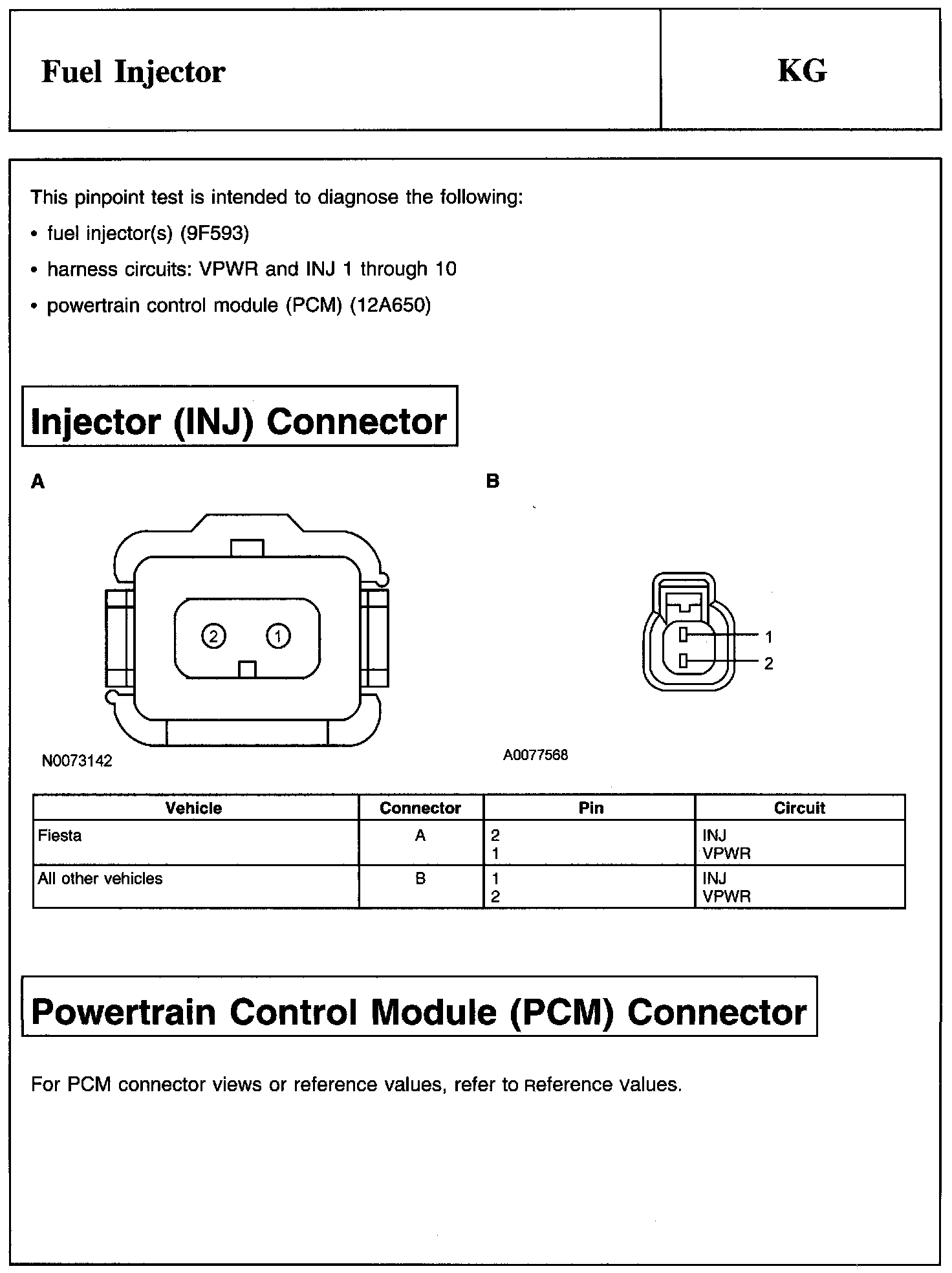

Injector (INJ) Connector And Powertrain Control Module (PCM) Connector:

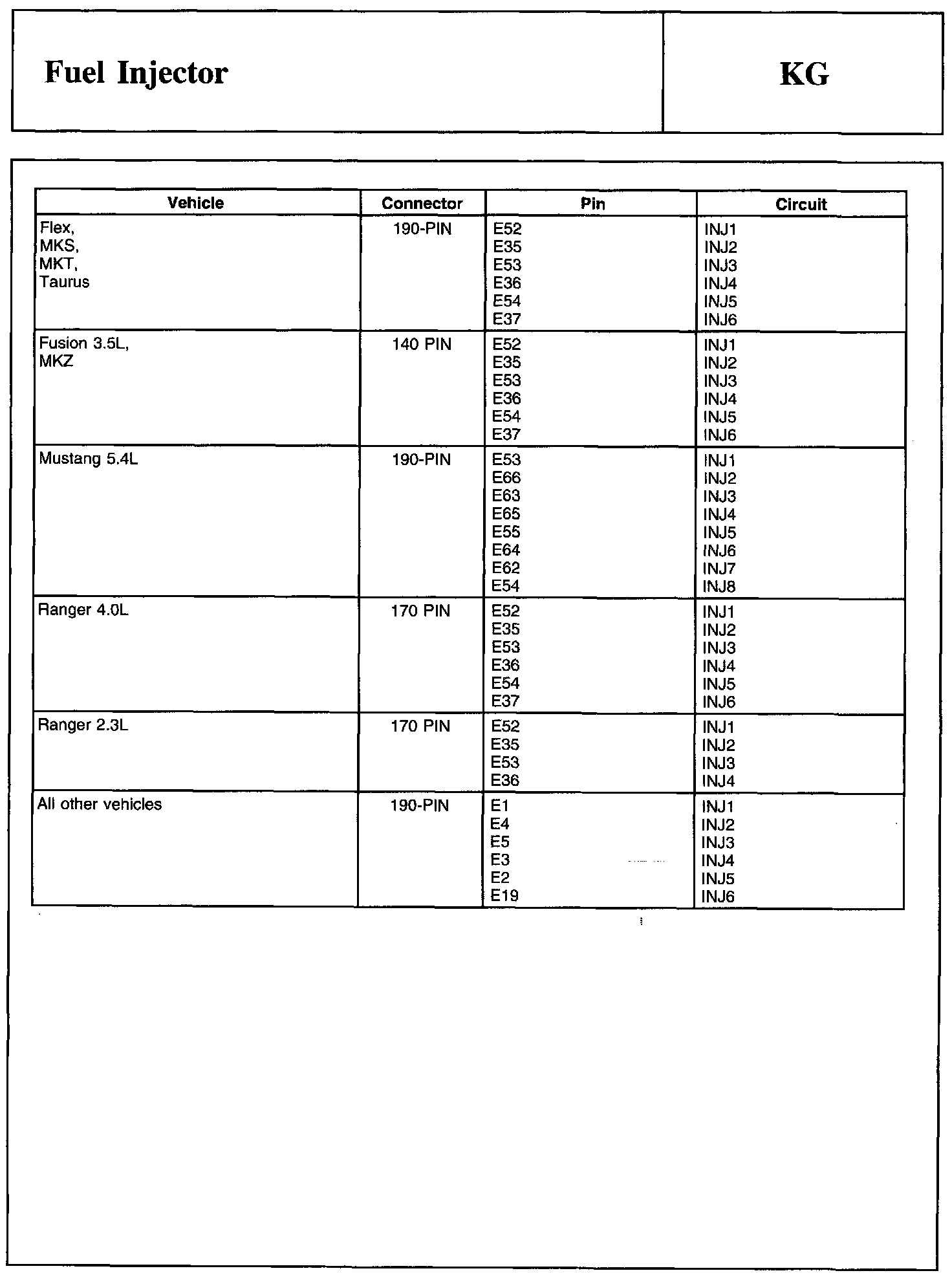

Powertrain Control Module (PCM) Connector:

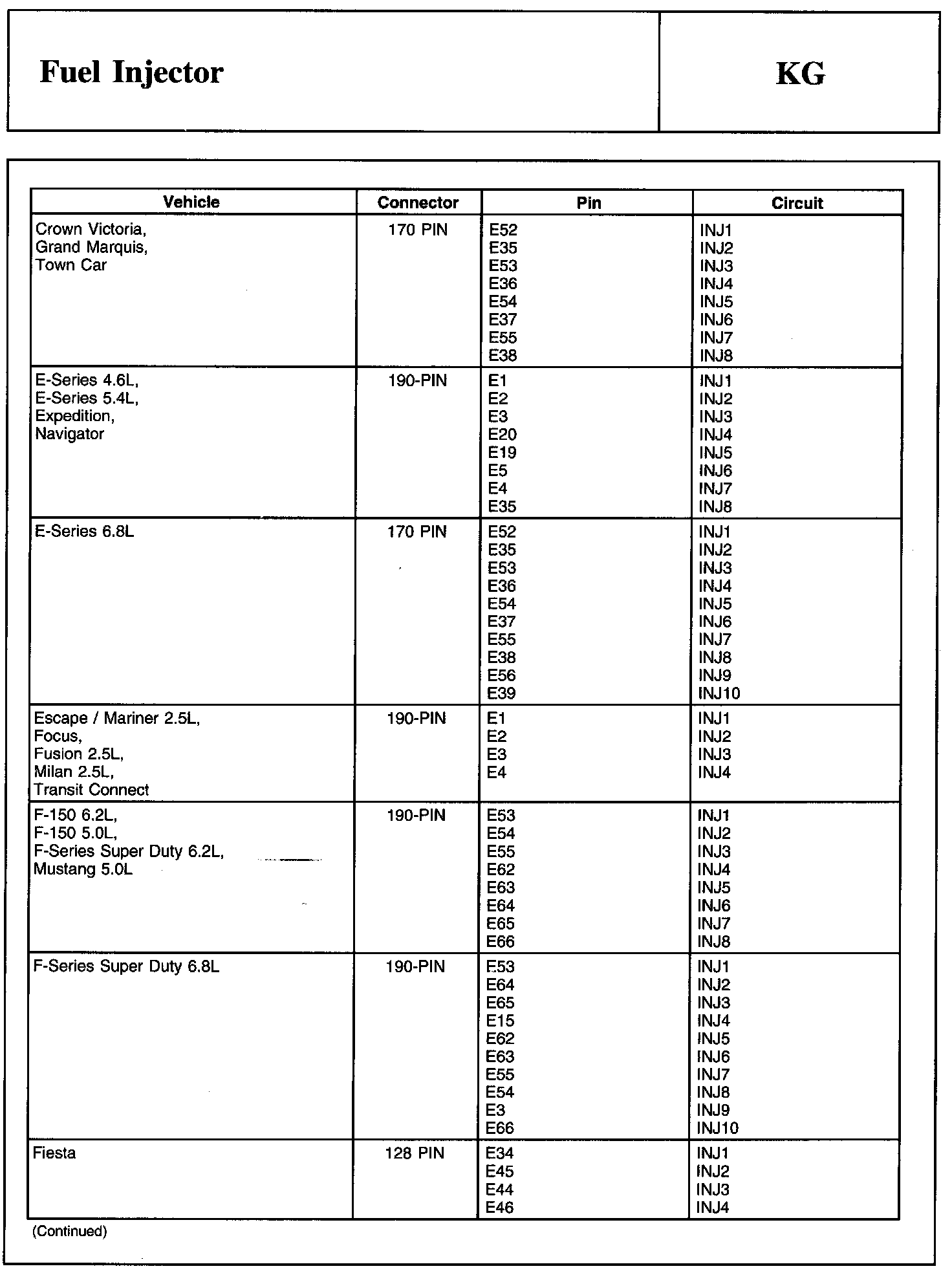

Powertrain Control Module (PCM) Connector:

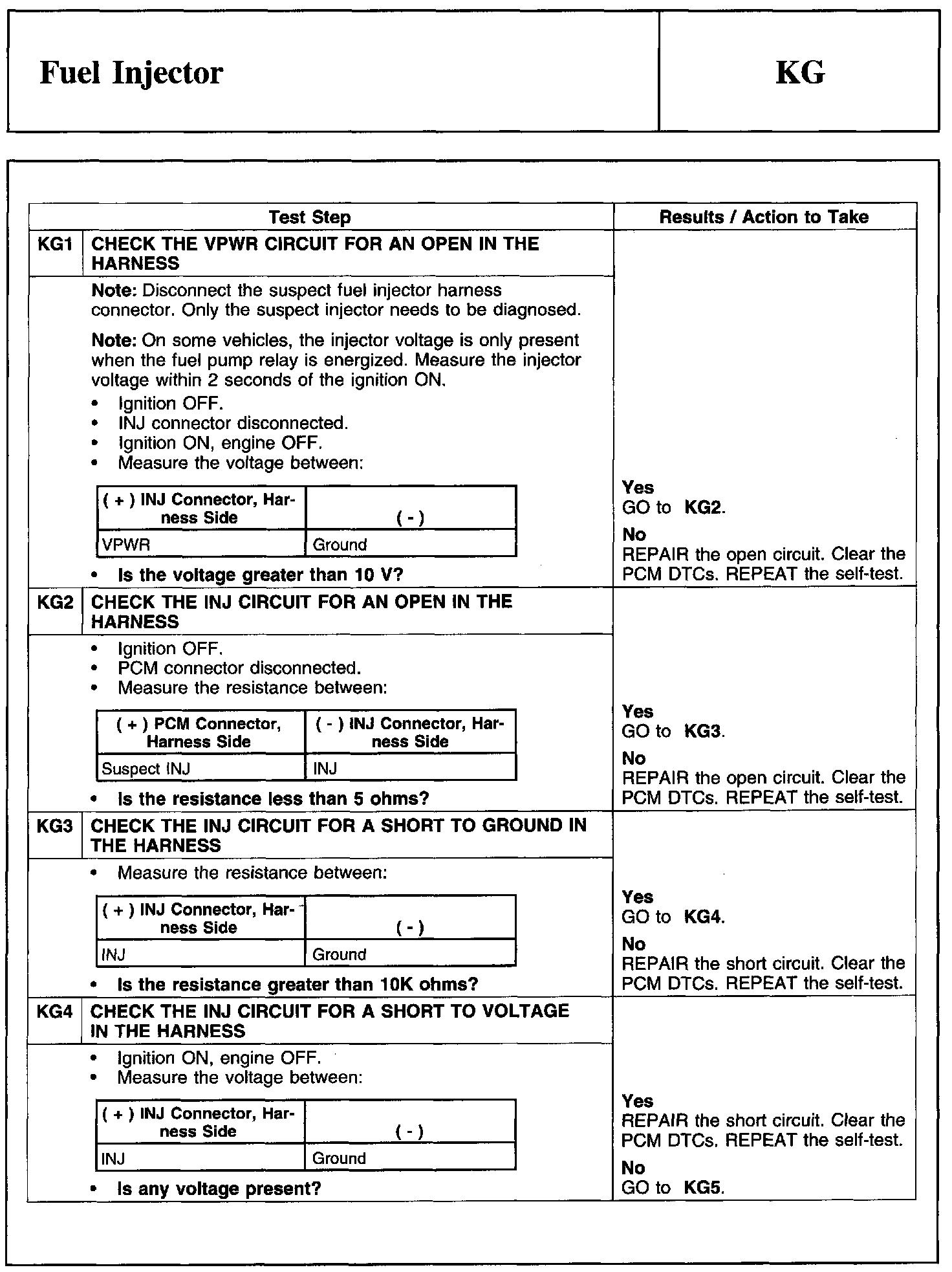

KG1-KG4:

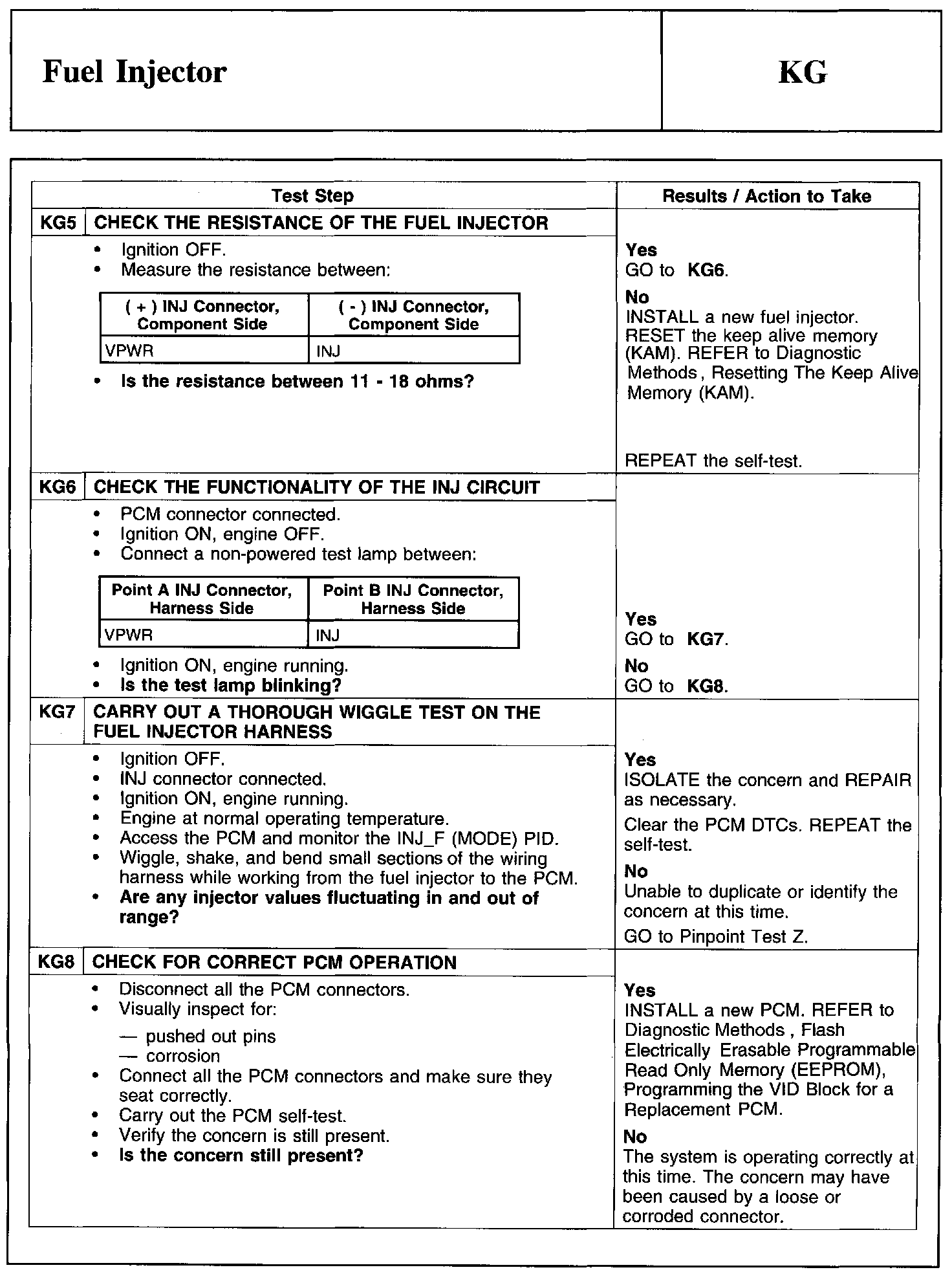

KG5-KG8:
