Heated Seat Module - Front Seat

Heated Seat Module - Front Seat









Removal and Installation

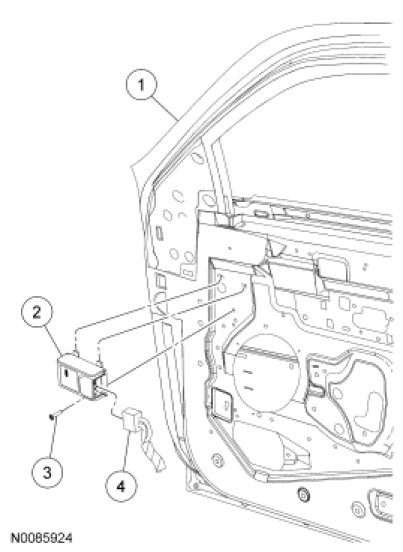

1. Remove the RH front door trim panel. For additional information, refer to Front Door Trim Panel removal and installation in Interior Trim and Ornamentation Service and Repair.

2. Disconnect the heated seat module electrical connector.

3. Remove the heated seat module retainer.

4. Rotate the bottom of the heated seat module upward and remove.

5. To install, reverse the removal procedure.
