Home >> Lincoln >> 2011 >> Town Car V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Trunk / Liftgate Control Module >> C4197 Trunk Pull-Down Module
April 5, 2026: LEMON Manuals is launched! Read the announcement.

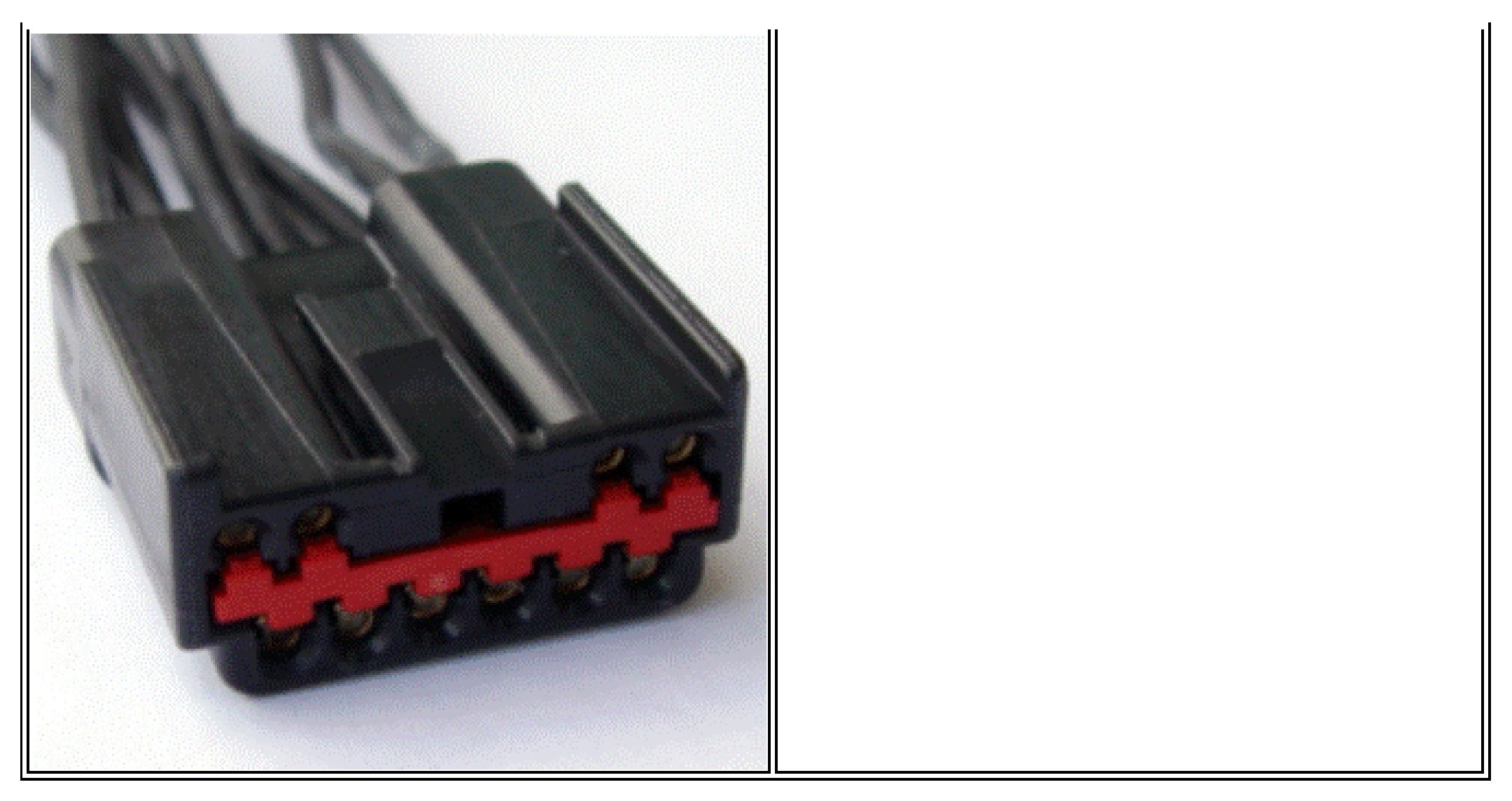

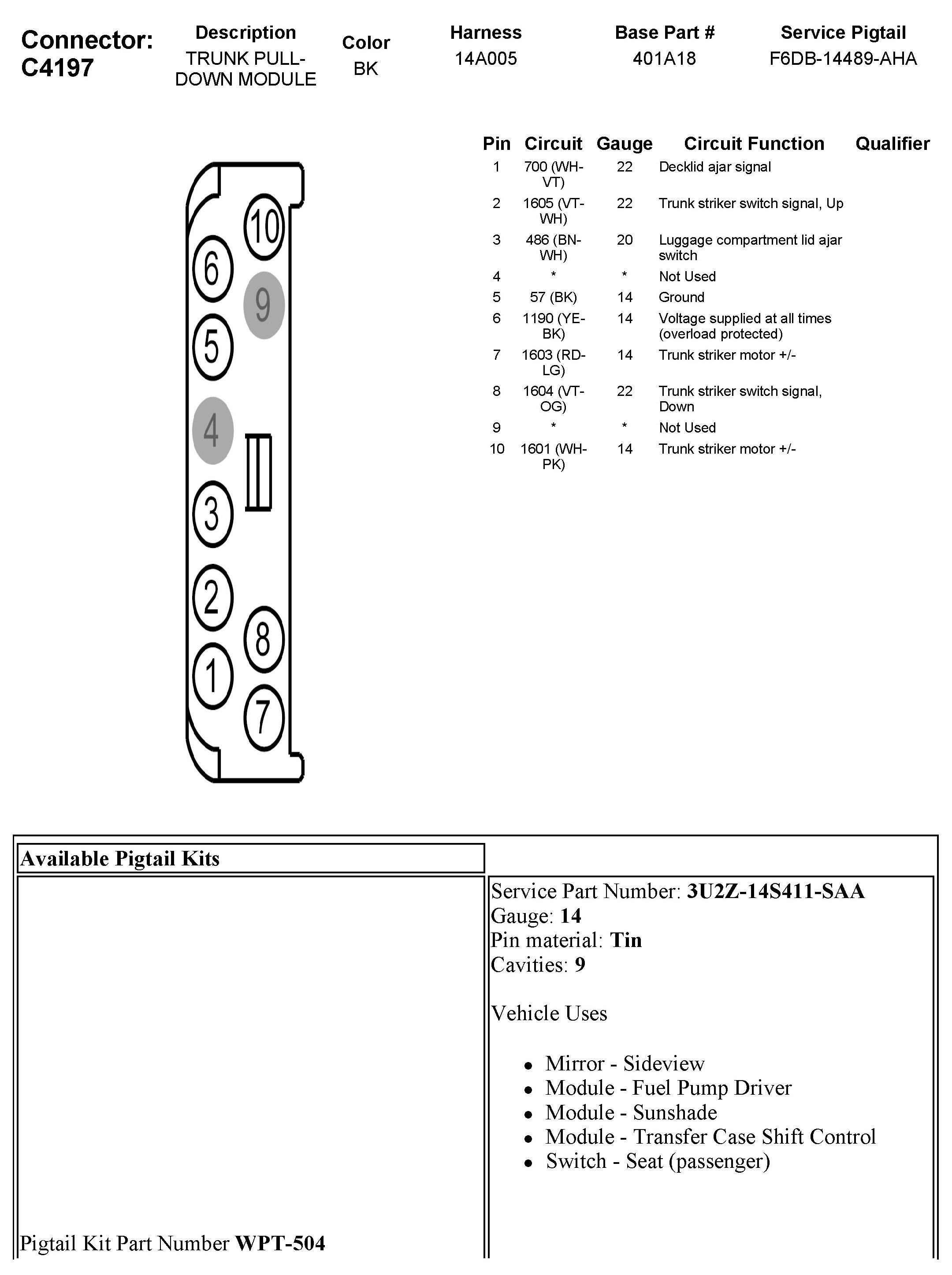

C4197 Trunk Pull-Down Module
