Trunk / Liftgate Closer Module: Service and Repair

Luggage Compartment Lid Closing Motor









Removal and Installation

1. Remove the 2 pin-type retainers and the scuff plate.

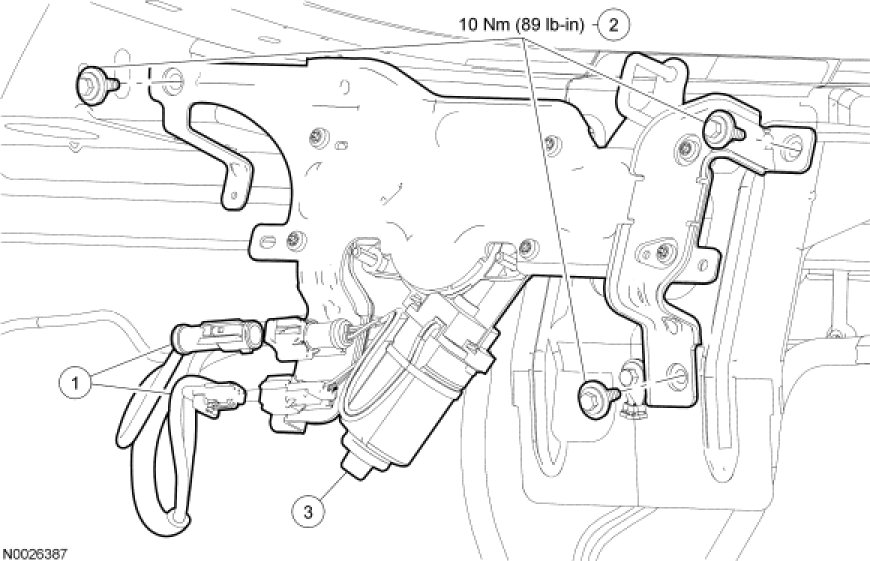

2. Disconnect the 2 luggage compartment lid closing motor electrical connectors.

3. Remove the 3 bolts and the luggage compartment lid closing motor.
- To install, tighten to 10 Nm (89 lb-in).

4. To install, reverse the removal procedure.
- Carry out the initialization procedure. For additional information, refer to Luggage Compartment Lid Motor Initialization Procedures.
