Audio Control Module (ACM): Notes

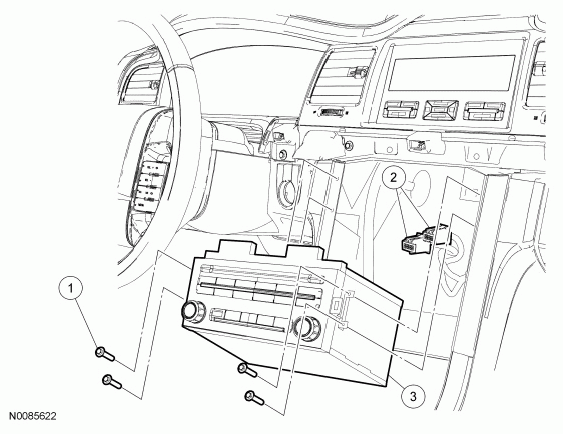

Fig 1: Exploded View Of Audio Control Module (ACM)
G06754676Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W707628-S Audio Front Control Module (ACM) screws (4 required)
2 - ACM electrical connectors (part of 14401)
3 18C815/18K391 ACM (without navigation/with navigation)
