Audio Digital Signal Processing (DSP) Module: Notes

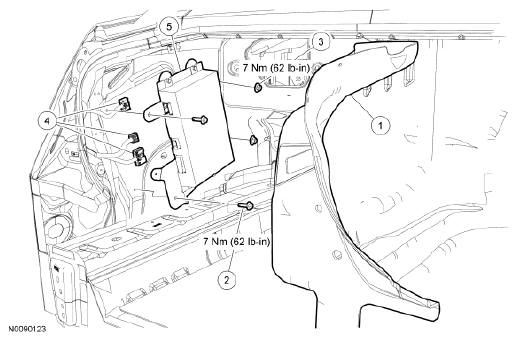

Fig 1: Exploded View Of Audio Digital Signal Processing (DSP) Module With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	5445423	LH luggage compartment trim panel
2	W706281-S	Audio Digital Signal Processing (DSP) module bolts (2 required)
3	N621906-S	Audio DSP module nuts (2 required)
4	-	Audio DSP module electrical connectors (part of 14A005)
5	18A849	Audio DSP module
