Removal and Installation

All vehicles

NOTE: Module configuration is required when a new ACM is being installed.
1. Upload the ACM configuration information to the scan tool. For additional information, refer to Programmable Module Installation (PMI) in MODULE CONFIGURATION .
2. Remove the RH instrument panel finish applique. For additional information, refer to Instrument Panel - Exploded View in INSTRUMENT PANEL AND CONSOLE .
3. Remove the LH and RH floor console finish mouldings.
   • Using a suitable tool such as a trim removal tool, pry upward to disengage the clips.
   Fig 1: Locating Floor Console Finish Mouldings And Clips

   Courtesy of FORD MOTOR CO.
4. Remove the floor console upper finish panel.
   • Using a suitable tool, pry upward to disengage the clips.
   Fig 2: Removing Floor Console Upper Finish Panel

   Courtesy of FORD MOTOR CO.
5. Remove the 2 screws and the floor console cup holder.
   Fig 3: Locating Screws And Floor Console Cup Holder

   Courtesy of FORD MOTOR CO.
NOTE: The shifter knob is shown removed for clarity.
Fig 4: Locating Selector Lever Trim Panel Screws
Courtesy of FORD MOTOR CO.
6. Remove the 4 selector lever trim panel screws, and slide the trim panel rearward to disengage the clips.

   Vehicles without navigation

7. Remove the 6 screws and the HVAC module.
   Fig 5: Locating Screws And HVAC Module

   Courtesy of FORD MOTOR CO.

   Vehicles with navigation

8. Remove the 4 screws and the floor console front finish panel.
   Fig 6: Locating Screws And Floor Console Front Finish Panel

   Courtesy of FORD MOTOR CO.

   All vehicles

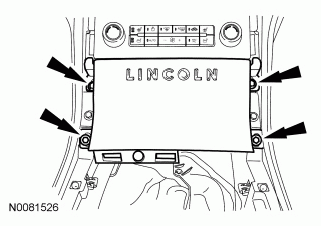

9. Remove the 4 screws and the ACM.
   • Disconnect the electrical connectors and the antenna lead-in cable.
10. To install, reverse the removal procedure.
    • Download the configuration information to the ACM. For additional information, refer to PMI in MODULE CONFIGURATION .
