Transaxle Support Insulator - 3.7L: Notes

SPECIAL TOOLS

G06061958Courtesy of FORD MOTOR CO.
 Oil Pan Holding Fixture
303-1295
MATERIAL SPECIFICATIONS

Item Specification
Threadlock and Sealer
TA-25		 WSK-M2G351-A5

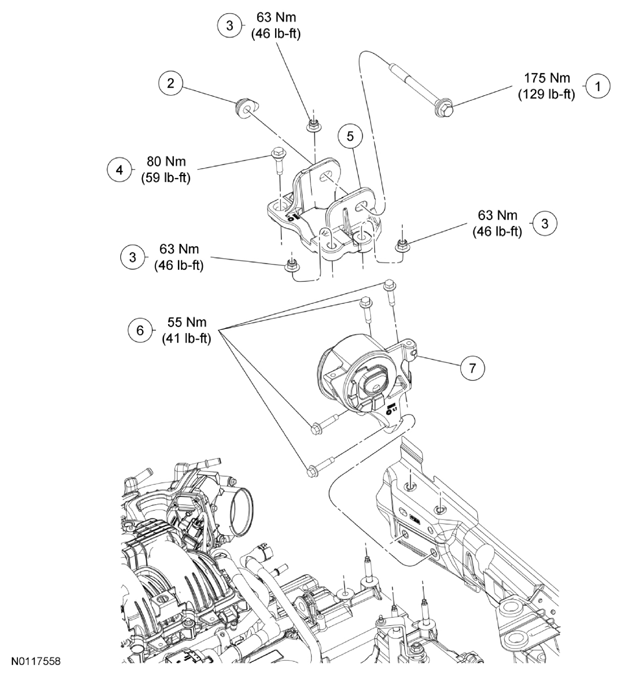

Fig 1: Exploded View Of Transaxle Support Insulator With Torque Specifications - 3.7L
G08007153Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W711873 Through bolt - transaxle support insulator
2 W711872 Flagnut - transaxle support insulator through bolt
3 W714682 Nuts - transaxle support insulator bracket
4 W712711 Bolt - transaxle support insulator bracket
5 6B033 Bracket - transaxle support insulator
6 W709234 Bolts - transaxle support insulator
7 6F020 Transaxle support insulator
