Audio Front Control Module (ACM) Removal

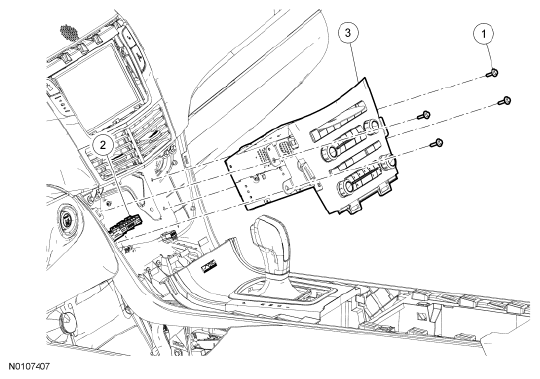

Fig 1: Identifying Audio Control Module With Screws, Front Control Interface Module Assembly And Electrical Connector
| Item | Part Number | Description |
|---|---|---|
| 1 | W707628-S | Audio Front Control Module (ACM) screws (4 required) |
| 2 | - | ACM electrical connectors (part of 14401) |
| 3 | - | ACM/Front Controls Interface Module (FCIM) assembly |
