Audio Digital Signal Processing (DSP) Module: Notes

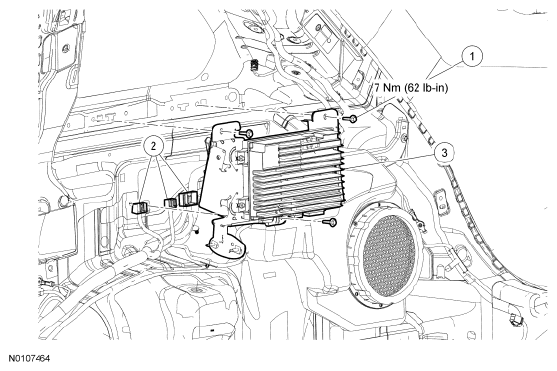

Fig 1: Audio Digital Signal Processing Module Related Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W505423-S	Audio Digital Signal Processing (DSP) module screws (3 required)
2	-	Audio DSP module electrical connectors
3	18B849	Audio DSP module
