Front Display Interface Module (FDIM): Notes

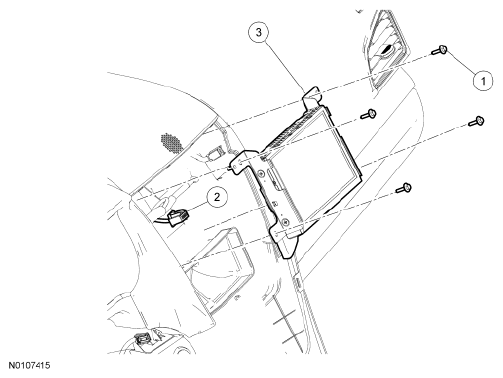

Fig 1: Identifying Front Display Interface Module Screws, FDIM Electrical Connector And FDIM
G06283974Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W705314-S Front Display Interface Module (FDIM) screws (4 required)
2 - FDIM electrical connector (part of 14401)
3 10E899 FDIM
