Rear Heating Ventilation Air Conditioning (RHVAC) Module

Rear Heating Ventilation Air Conditioning (RHVAC) Module

Vehicles With Short Floor Console










Vehicles With Long Floor Console









Removal and Installation

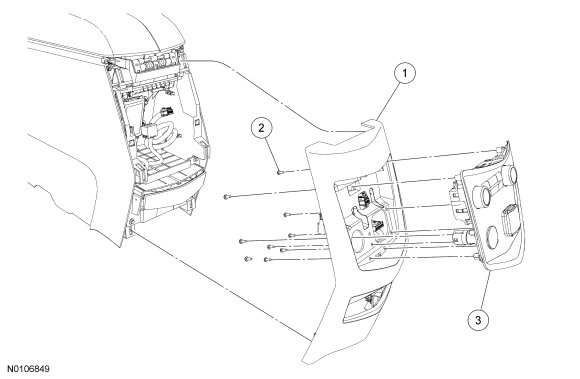

Vehicles with short floor console

1. Remove the floor console rear trim panel.
- Disconnect the electrical connectors.


2. Remove the 9 Rear Heating Ventilation Air Conditioning (RHVAC) module screws.

3. Remove the RHVAC (Rear Heating Ventilation Air Conditioning) module.
- Disconnect the electrical connectors.

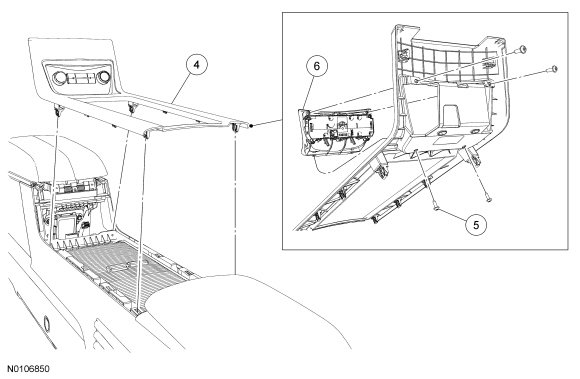

Vehicles with long floor console

4. Remove the rear floor console upper trim panel.
- Disconnect the electrical connector.


5. Remove the 4 RHVAC (Rear Heating Ventilation Air Conditioning) module screws.

6. Remove the RHVAC (Rear Heating Ventilation Air Conditioning) module.

All vehicles

7. To install, reverse the removal procedure.
