Vehicles That Start

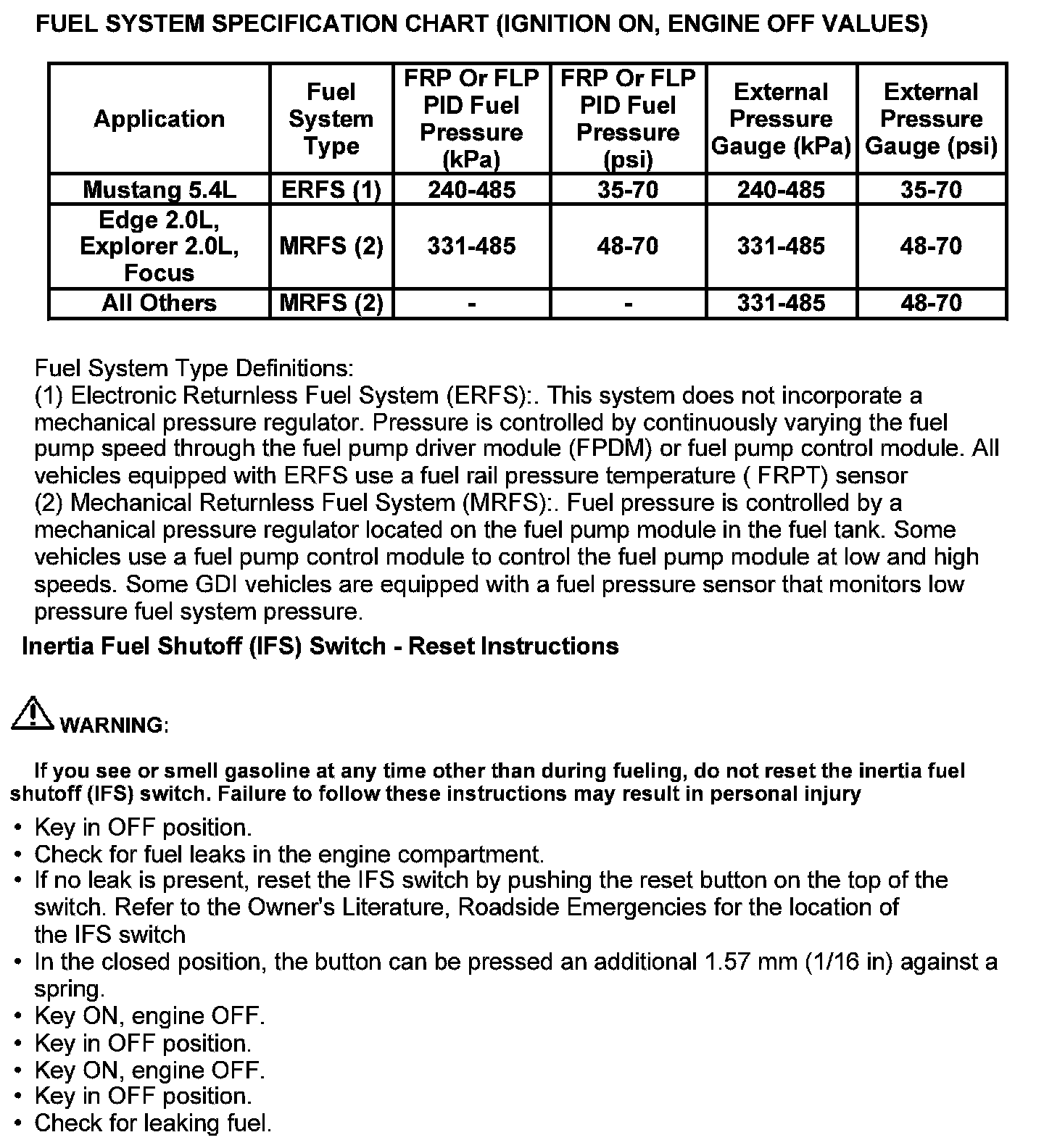

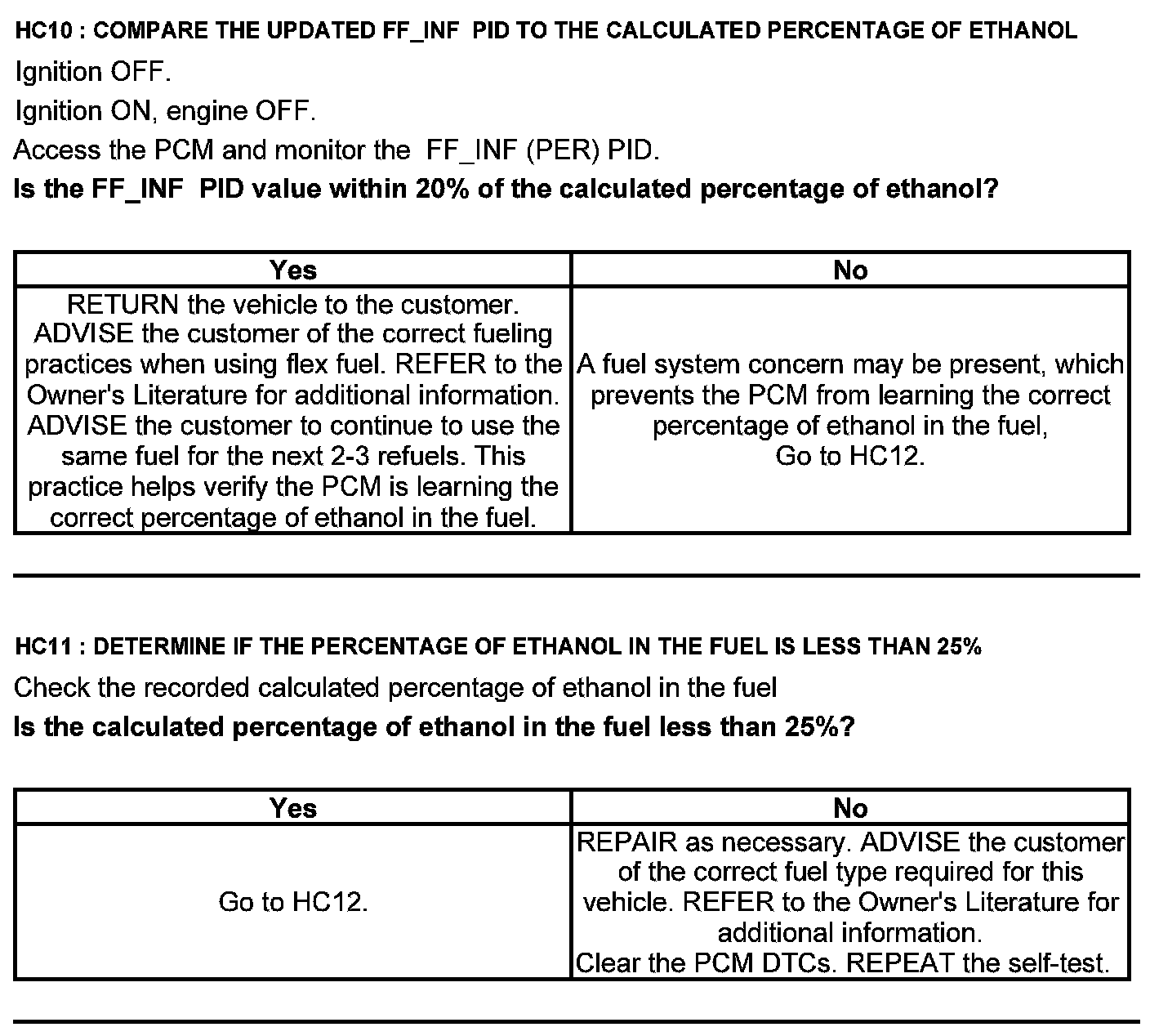

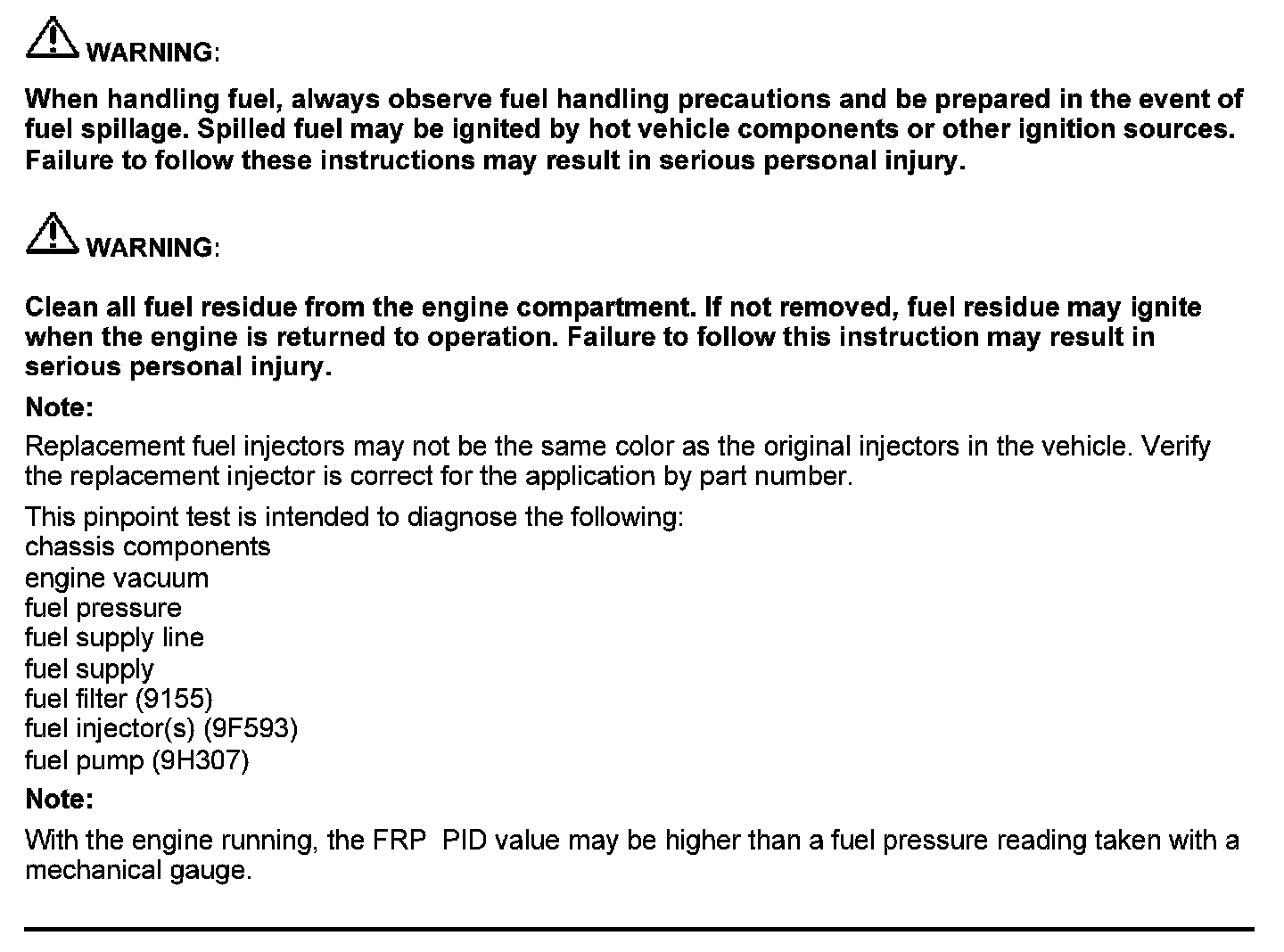

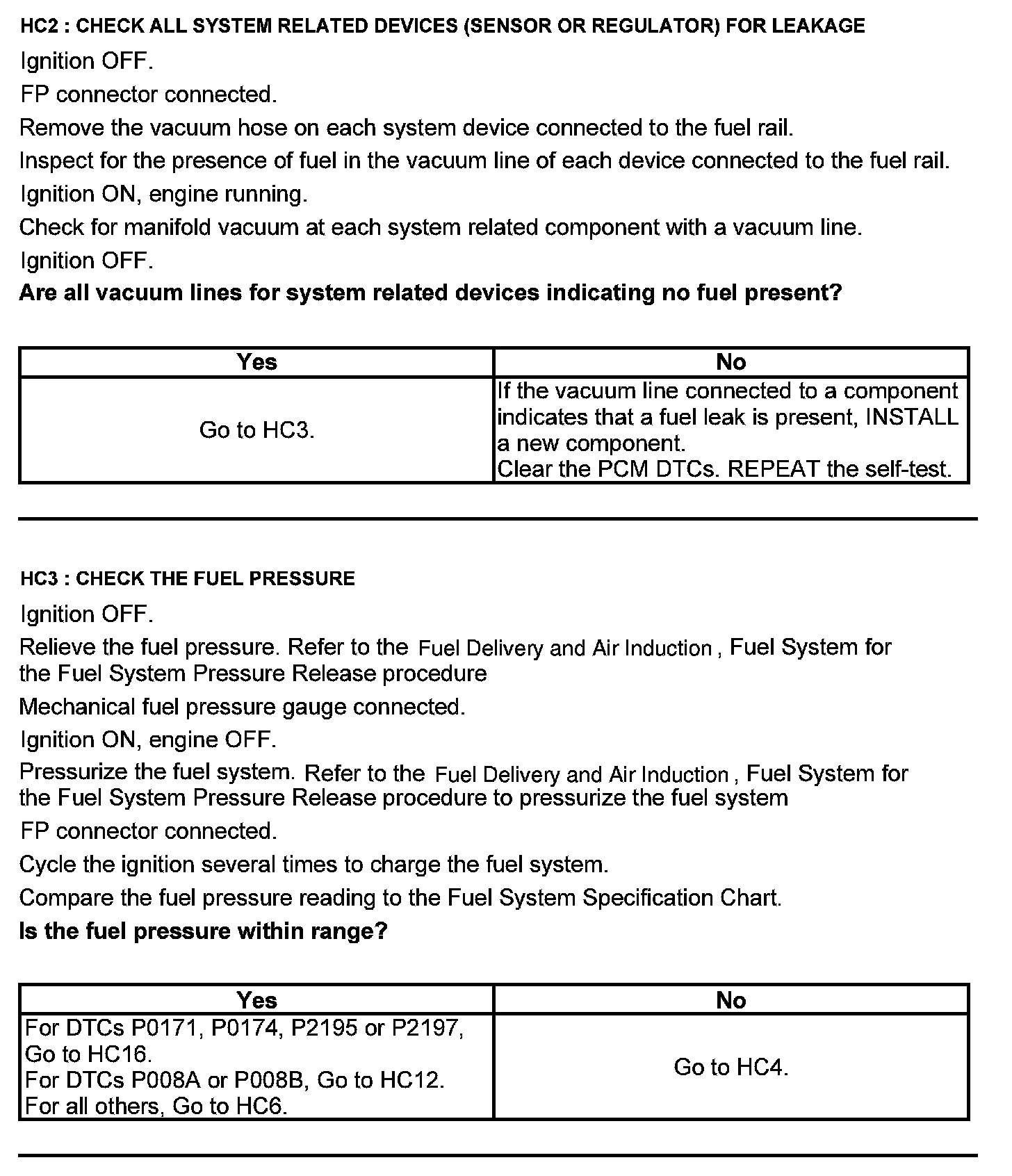

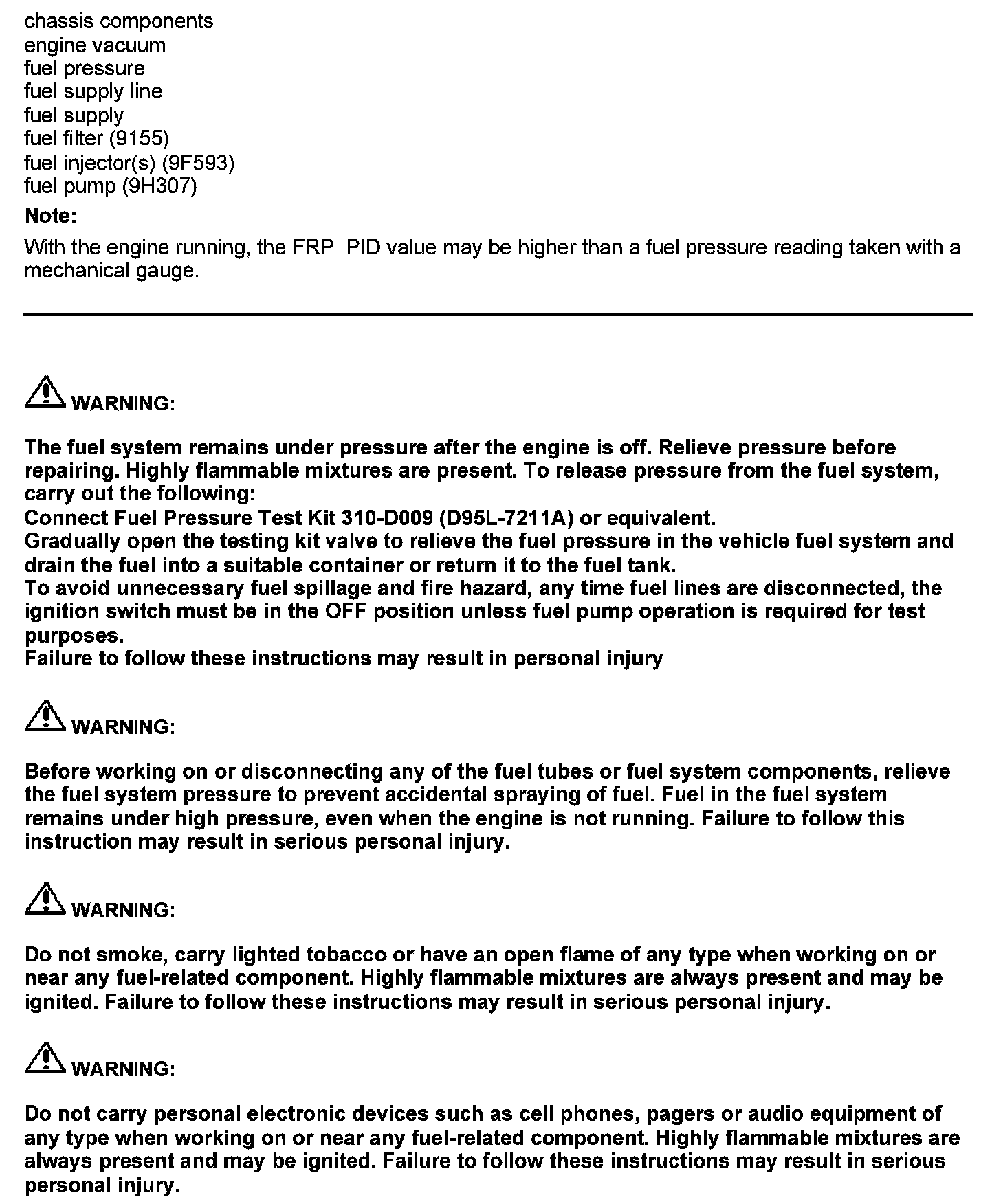

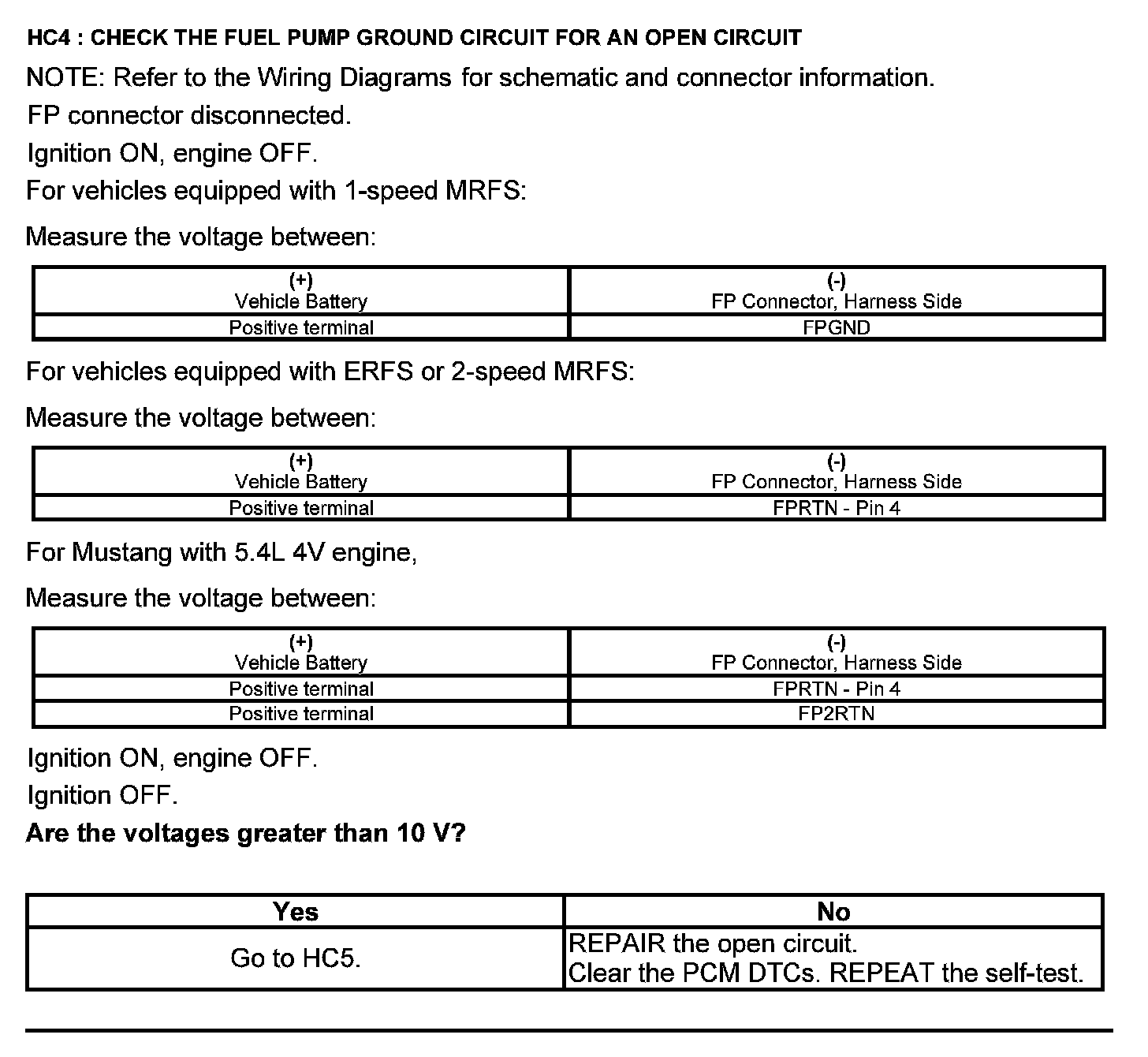

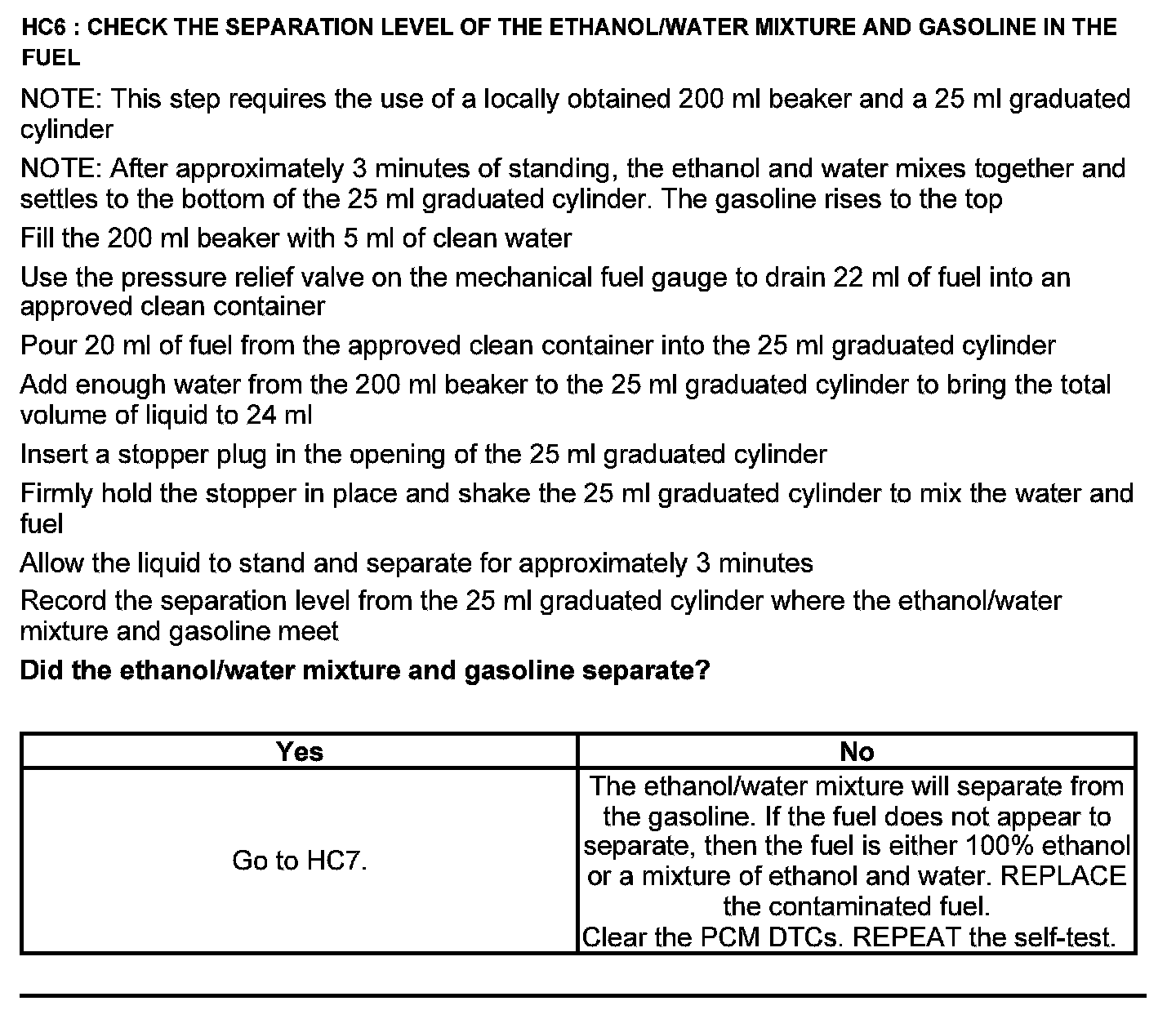

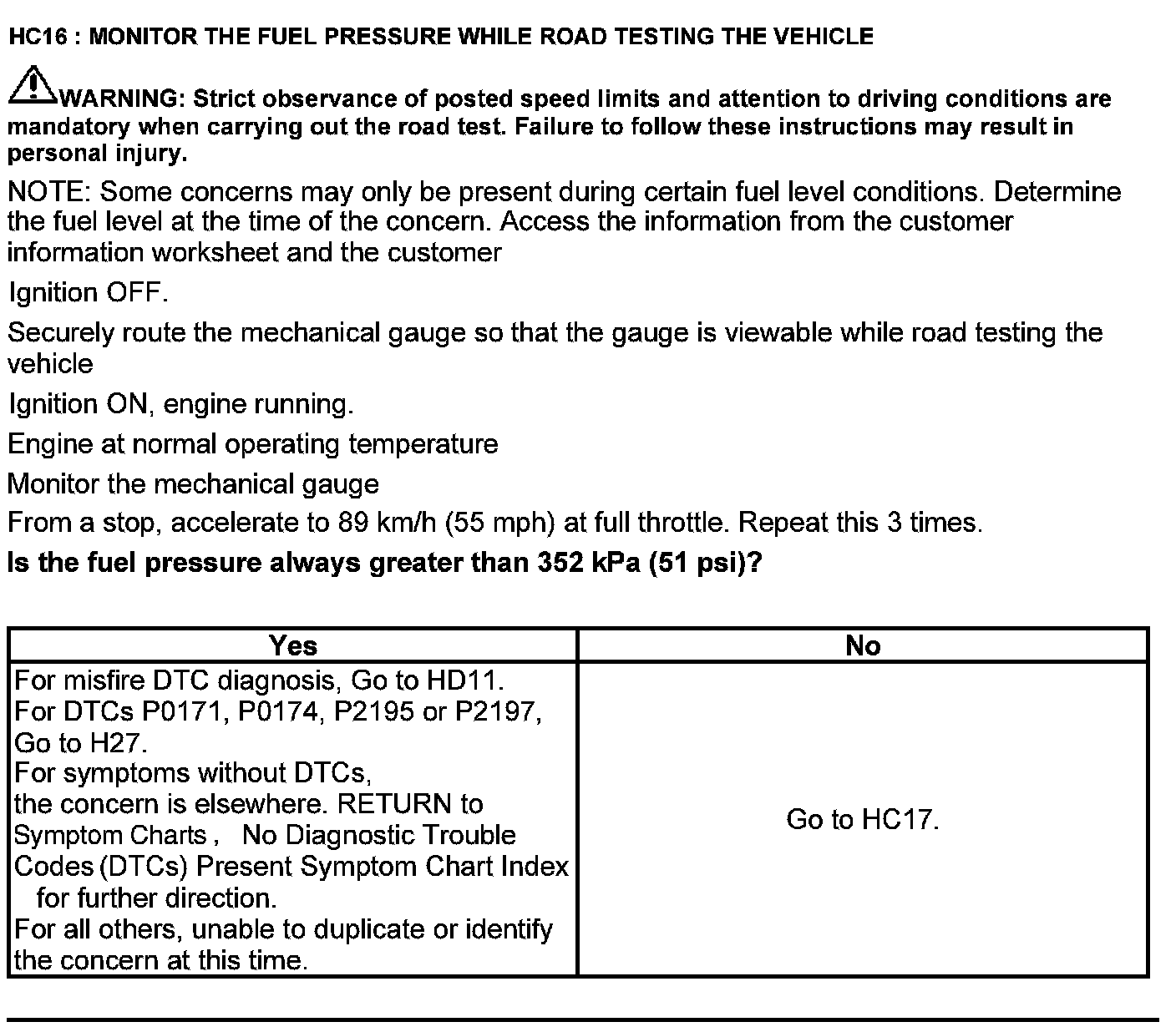

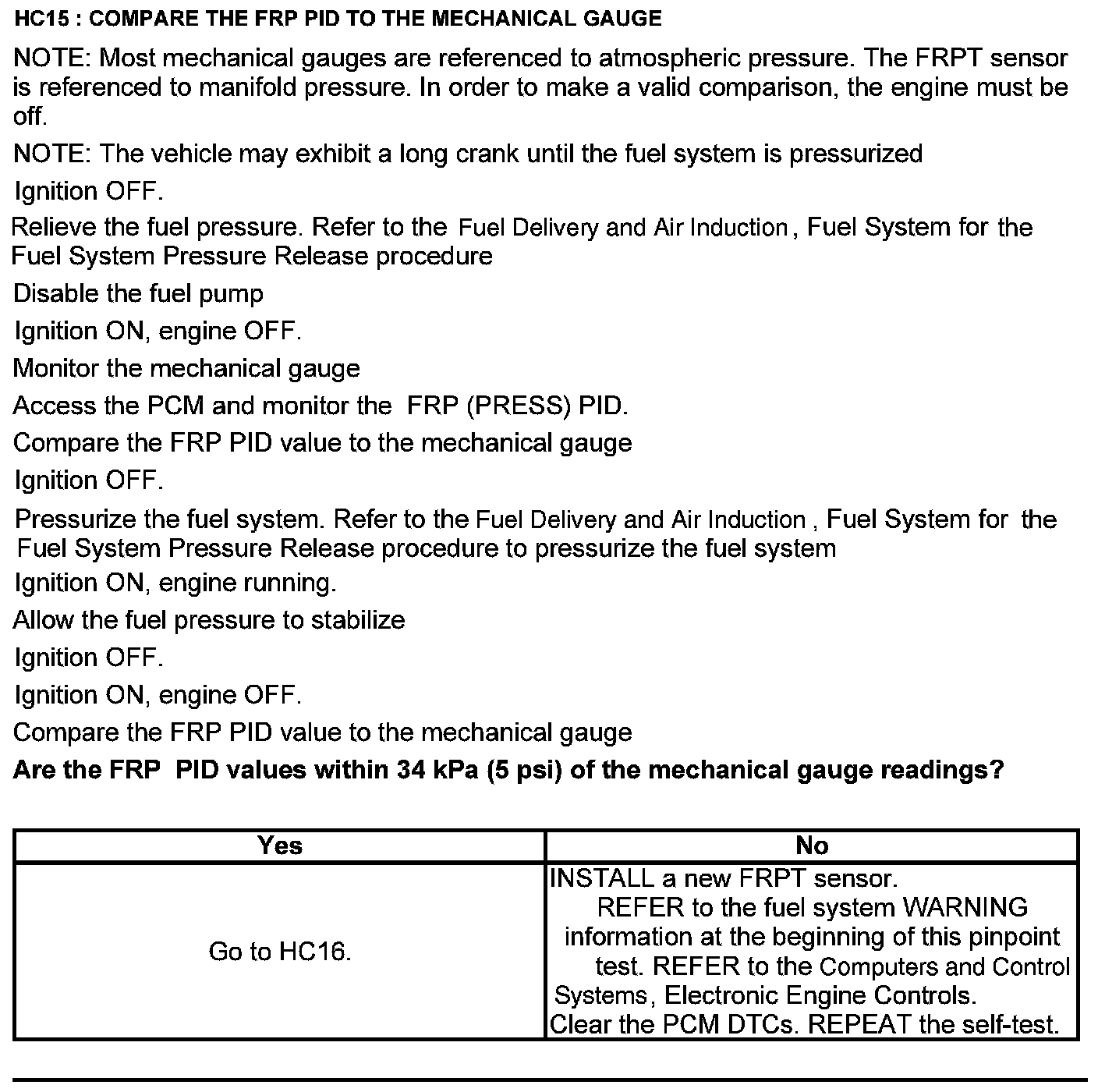

Fuel Delivery System - Vehicles that start.

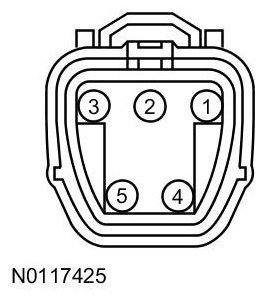

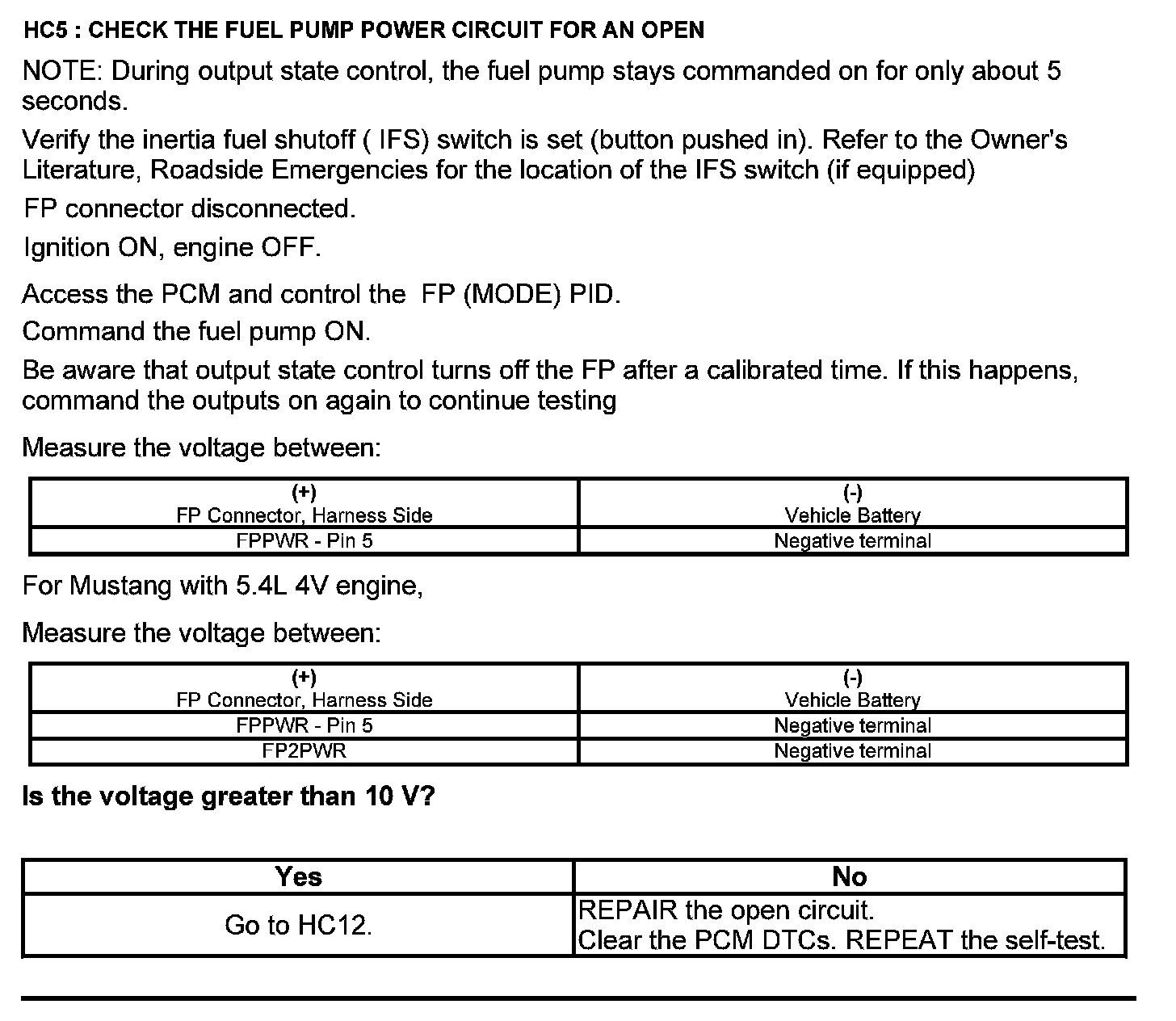

Fuel Pump (FP) Connector






Harness Side
