In-Vehicle Temperature Sensor

In-Vehicle Temperature Sensor - MKZ

MKZ

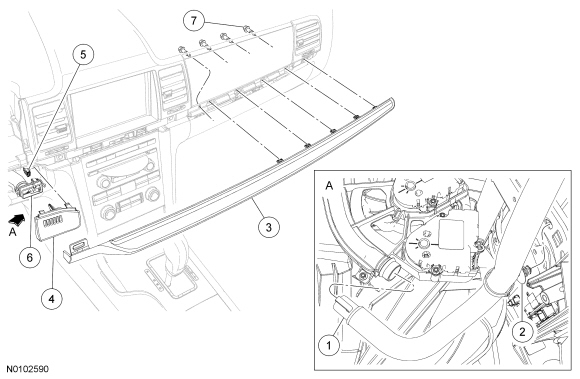

Removal and Installation

1. Remove the instrument cluster finish panel.

2. Disconnect the in-vehicle temperature sensor aspirator hose connection at the heater core and evaporator core housing.

3. Detach the in-vehicle temperature sensor aspirator hose pin-type retainer.

4. Lower the glove compartment.

5. Remove the 4 RH instrument panel finish moulding screws.

6. Remove the RH instrument panel finish moulding.

7. Detach the in-vehicle temperature sensor grille from the instrument panel.

8. Detach the in-vehicle temperature sensor grille from the in-vehicle temperature sensor.

9. Disconnect the in-vehicle temperature sensor electrical connector.

10. Remove the in-vehicle temperature sensor and aspirator hose assembly.

11. To install, reverse the removal procedure.
