Front Controls Interface Module (FCIM) - Fusion: Notes

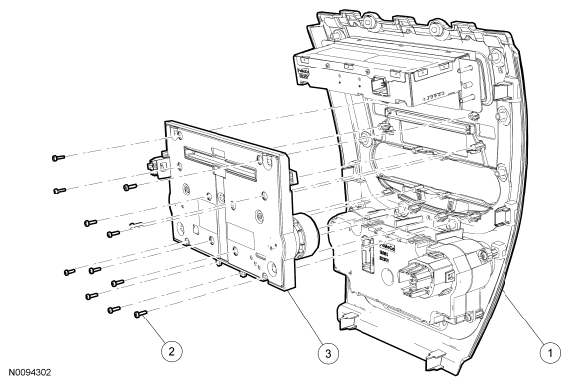

Fig 1: Identifying Front Controls Interface Module(Fusion) And Related Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Instrument panel center finish panel
3	W506943-S	Front Controls Interface Module (FCIM) screws (12 required)
3	18842	FCIM
