Wiper/Washer Module: Notes

NOTE: Instrument panel removed for clarity.

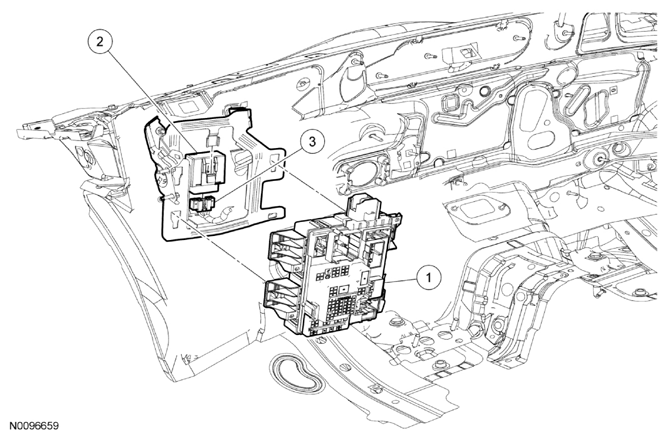

Fig 1: Identifying Wiper/Washer Module Components
G07789341Courtesy of FORD MOTOR CO.
Item Part Number Description
1 15605 Smart Junction Box (SJB)
2 14B205 Wiper/washer module
3 14401 Wiper/washer module electrical connector
