In-Vehicle Temperature Sensor

In-Vehicle Temperature Sensor - Navigator









Removal and Installation

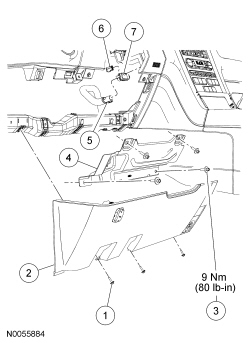

1. Remove the 3 lower steering column cover screws and the lower steering column cover.
- Disconnect the electrical connector.


2. Remove the 4 steering column reinforcement bolts and position the steering column reinforcement aside.
- To install, tighten to 9 Nm (80 lb-in).


3. Remove the in-vehicle temperature sensor in the following sequence.
1. Detach the in-vehicle temperature sensor from the instrument panel finish panel.

2. Disconnect the aspirator hose.

3. Disconnect the in-vehicle temperature sensor electrical connector.


4. To install, reverse the removal procedure.
