Removal And Installation: Radiator: Notes
WARNING: This page is about a different car, the 2012 Lincoln Navigator, 2012 Ford Expedition EL, and 2012 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
8075 |
Radiator overflow hose |
| 2 |
8260 |
Upper radiator hose |
| 3 |
8286 |
Lower radiator hose |
| 4 |
8B365 |
Lower radiator hose spring clip |

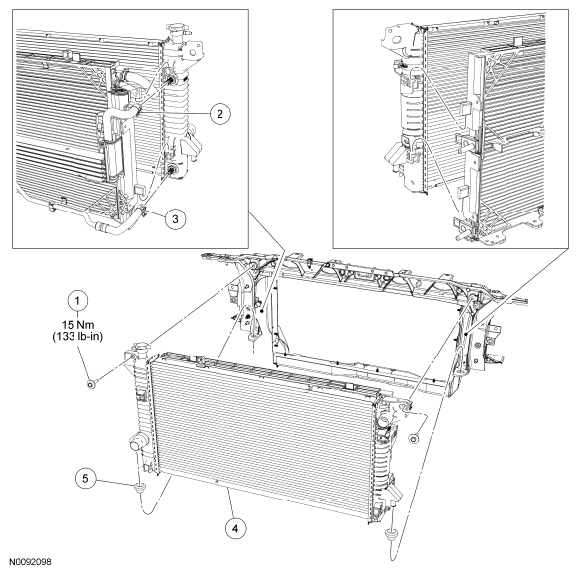

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W503924 |
Radiator bolt (2 required) |
| 2 |
7C410 |
Transmission fluid cooler-to-radiator upper hose |
| 3 |
7B028 |
Transmission fluid cooler-to-radiator lower hose |
| 4 |
8005 |
Radiator |
| 5 |
8124 |
Radiator insulator (2 required) |
