Air Suspension Compressor Drier: Notes

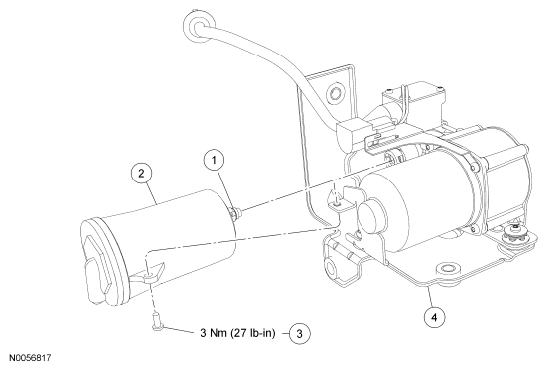

Fig 1: Air Suspension Compressor Drier Replacement Components With Torque Specifications
G06124973Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - O-ring (part of 5346)
2 5346 Compressor drier
3 - Compressor drier screw (part of 5346)
4 3B484 Compressor and bracket assembly
