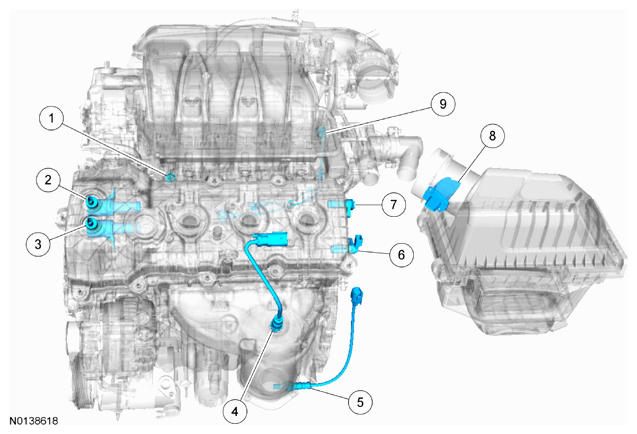

Front Engine Sensor Locations - 3.7L Ti-VCT

G08660156
Item Description Comments
1 CHT sensor -
2 LH intake VCT oil control solenoid -
3 LH exhaust VCT oil control solenoid -
4 LH HO2S -
5 LH CMS -
6 LH exhaust CMP sensor -
7 LH intake CMP sensor -
8 MAF sensor -
9 Rear KS -
