Cruise-Control Module (C-CM): Notes

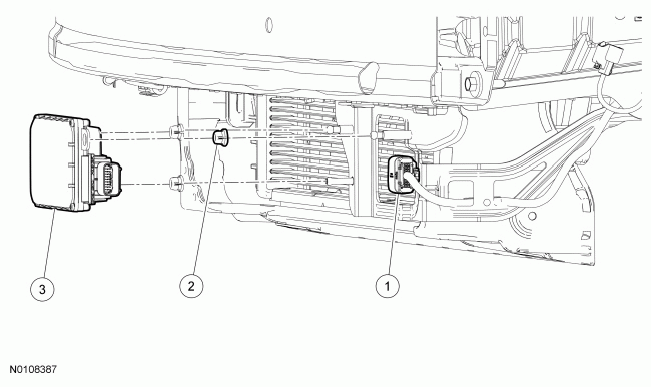

Fig 1: Exploded View Of Cruise-Control Module
G06757342Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Cruise-Control Module (C-CM) electrical connector (part of 14290)
2 W790214 C-CM  ball socket grommets (3 required)
3 9E731 C-CM
